Removing The Climate Control Unit

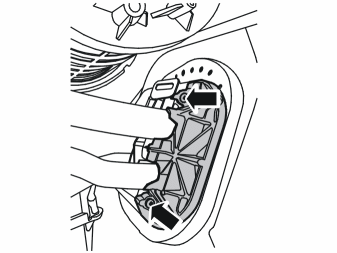

Fig 1: Identifying Spacer And Right-Hand Half Of Lead-In

Courtesy of VOLVO CARS CORPORATION

Remove:

• the 2 screws and remove the right-hand half of the lead-in. See the illustration
• the section that holds the heat exchanger and evaporator pipes apart.

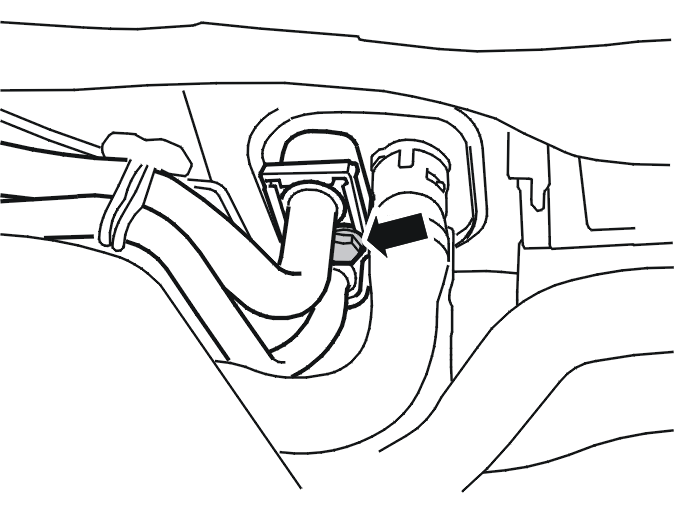

Fig 2: Identifying Screw Securing Air Conditioning (A/C) Pipes

Courtesy of VOLVO CARS CORPORATION

Lift up both air conditioning (A/C) hoses from their mountings below the right-hand spring strut turret.

Remove the 1 screw securing the air conditioning (A/C) pipes to the evaporator. See the illustration.

Pull the pipes off from the evaporator connection.

Separate the pipes to the hear exchanger as follows:

see HEAT EXCHANGER

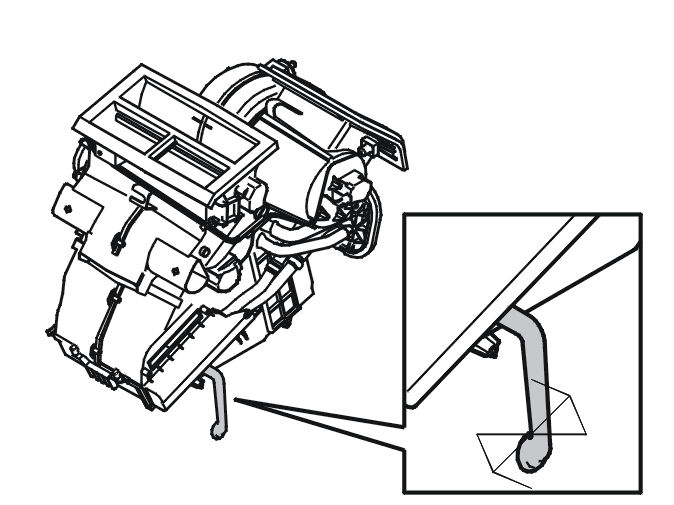

Fig 3: Identifying Drainage Hose From Lower Connection On Right-Hand Side Under Heat Exchanger Housing

Courtesy of VOLVO CARS CORPORATION

Remove:

• the drainage hose from the lower connection on the right-hand side under the heat exchanger housing
• the climate control unit.
