Side Members, Front

NOTE: Some variation may occur. However, the essential information in the graphics is always correct.

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Symbol legend

Measurement is given from center

Measurement is given from an edge

Measurement is given from a cut marking

Courtesy of VOLVO CARS CORPORATION

For measuring, the recommendation is to use an electronic measuring device type Alvis Light or similar. A deviation of +/- 2 mm is acceptable.

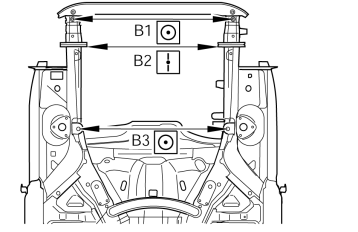

Fig 2: Front Side Member Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

B1 = 1012 mm

B2 = 826 mm

B3 = 945 mm

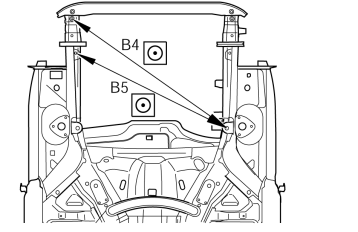

Fig 3: Front Side Member Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

B4 = 1198 mm

B5 = 1063 mm

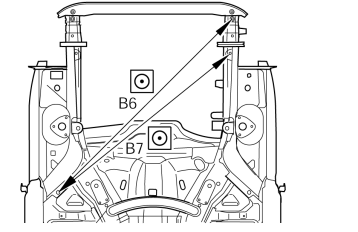

Fig 4: Front Side Member Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

B6 = 1583 mm

B7 = 1421 mm
