Body Repair: Rustproofing: Preparation

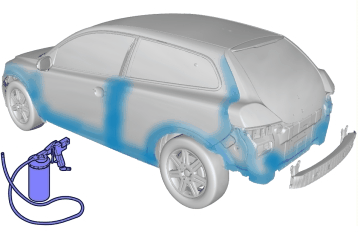

Fig 1: Vehicle Cavity Protection Material Application Areas (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

Rustproofing diagram for cavity protection

Attach the following items:

Cavity protection is used for, e.g., weld seams and areas that have been reworked in other ways.

Insert the hose in the cavity and spray at the same time as the hose is pulled out slowly.

If repairs are made to the body, the areas marked in the illustrations are to be rustproofed extra thoroughly.

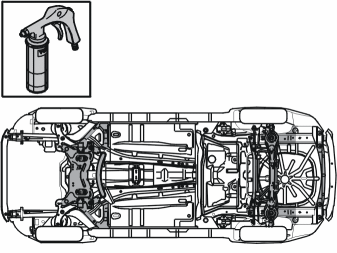

Fig 2: Vehicle Cavity Protection Material Application Areas (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

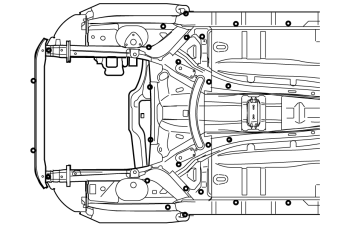

Fig 3: Vehicle Cavity Protection Material Application Areas (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

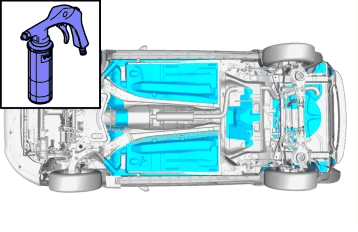

Fig 4: Underbody Stone-Chip Protection Material Application Areas

Courtesy of VOLVO CARS CORPORATION

Rustproofing schedule for stone-chip protection

Use: Stone-chip protection, 1161815

Apply stonechip protection to the areas of the vehicle marked in blue in the illustration above.

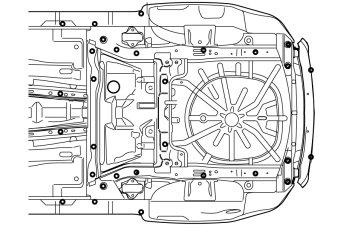

Fig 5: Underbody Rustproofing Material Application Locations

Courtesy of VOLVO CARS CORPORATION

Rustproofing schedule for underbody protection

Use: Underbody protection, 1161298

Apply underbody protection to the areas of the vehicle marked in grey in the illustration above.
