Side Members Rear

NOTE: Some variation may occur. However, the essential information in the graphics is always correct.

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Symbol legend

Measurement is given from center

Measurement is given from an edge

Measurement is given from a cut marking

Courtesy of VOLVO CARS CORPORATION

For measuring, the recommendation is to use an electronic measuring device type Alvis Light or similar. A deviation of +/- 2 mm is acceptable.

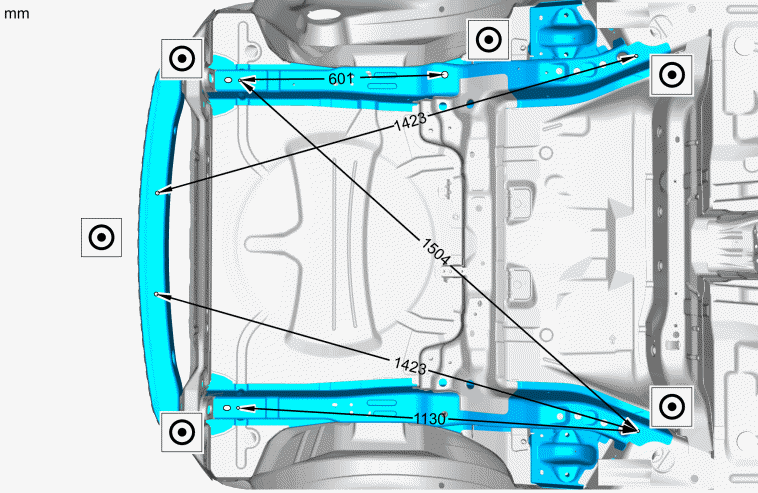

Fig 2: Rear Side member Dimensions And Measurement Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

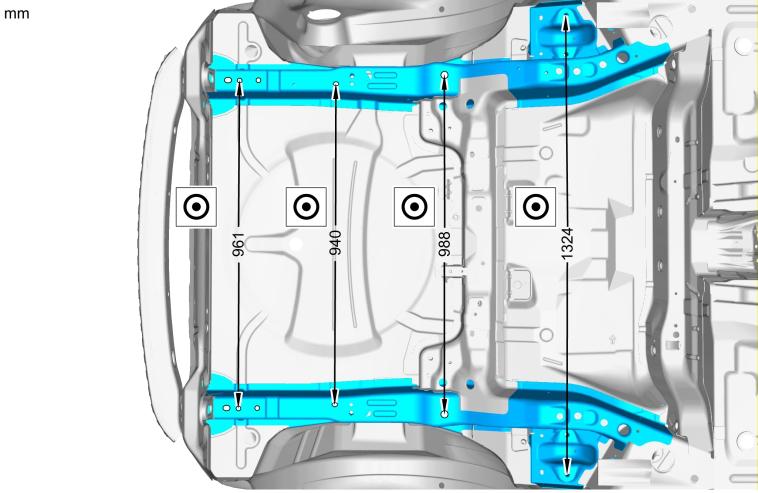

Fig 3: Rear Side member Dimensions And Measurement Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
