Body Sill Reinforcement

Welding body components; see WELDING, GENERAL .

Determine the extent of the damage. See BODY SIDE .

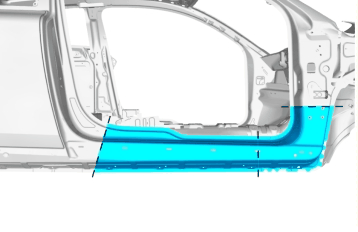

Fig 1: Sill Molding Cut Lines

Courtesy of VOLVO CARS CORPORATION

Alternative sill molding cutting points.

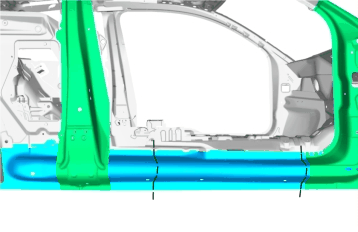

Fig 2: Sill Molding Reinforcement Cut Lines

Courtesy of VOLVO CARS CORPORATION

Upon replacement of the sill molding reinforcement assembly, the rear fender, B-pillar and A-pillar must be replaced.

Remove the following items:

Alternative cutting points.

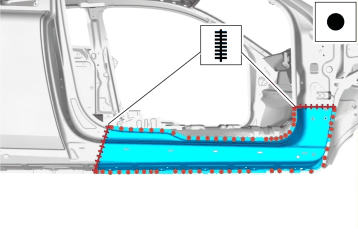

Fig 3: Sill Molding Reinforcement Weld Locations

Courtesy of VOLVO CARS CORPORATION

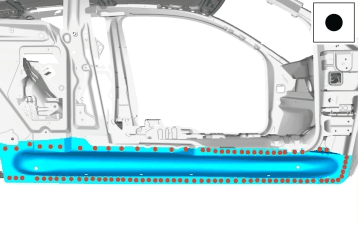

Fig 4: Outer Body Sill Panel Weld Locations

Courtesy of VOLVO CARS CORPORATION

Install the following items:

Rustproof; see RUSTPROOFING .

Install the side section. See SIDE SECTION, EXPOSING .
