Terminal Removal And Repair: Removal

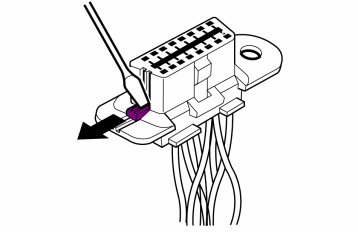

Fig 1: Removing Data Link Connector
GLL153705Courtesy of VOLVO CARS CORPORATION

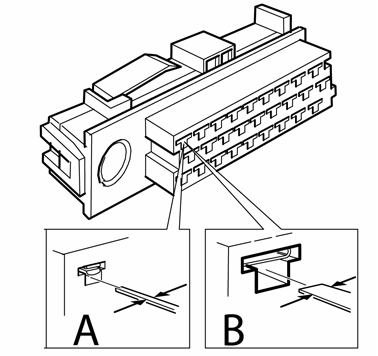

Fig 2: Inserting Terminal Removal Tool
GLL178856Courtesy of VOLVO CARS CORPORATION

see 9512636

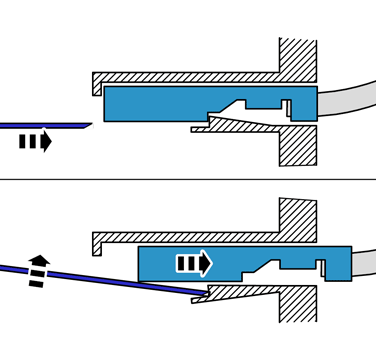

Fig 3: Pressing Tab And Removing Wire
GLL178857Courtesy of VOLVO CARS CORPORATION
