Subwoofer Module (Sub): Removal

NOTE:

Removal steps in this procedure may contain installation details.

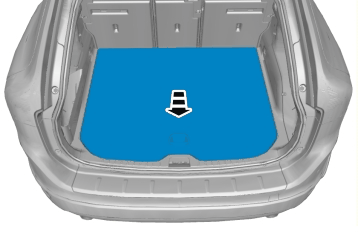

Fig 1: Removing The Rear Floor Board

Courtesy of VOLVO CARS CORPORATION

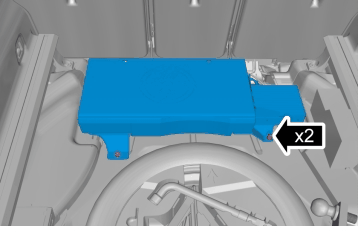

Fig 2: Identifying Subwoofer Module Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

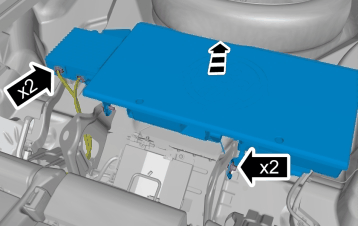

Fig 3: Removing The Subwoofer Module

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
