Explanation Of Dimensions

Fig 1: Identifying Measurement Dimensions

Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Symbol number 3 means that the measurement is from a cut mark.

Fig 2: Identifying Measuring Point Symbol

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measurement is made from the bottom of the recess. See the figure. If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

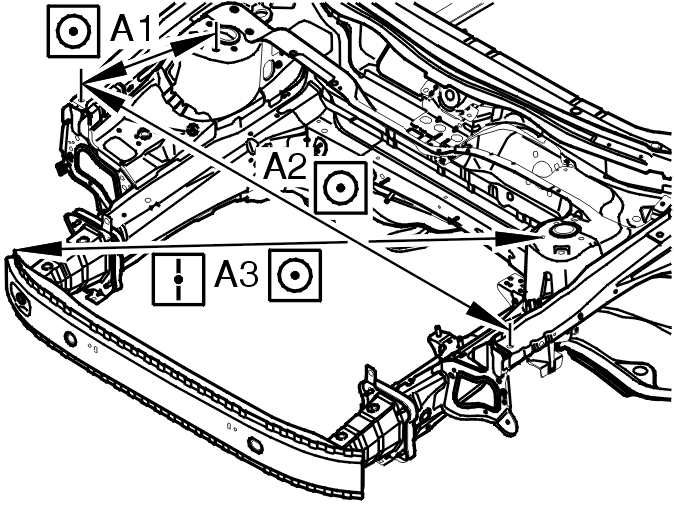

Fig 3: View Of Symbol Dimensions (1 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1 = 345 mm

A2 = 1, 448 mm

A3 = 1, 341 mm

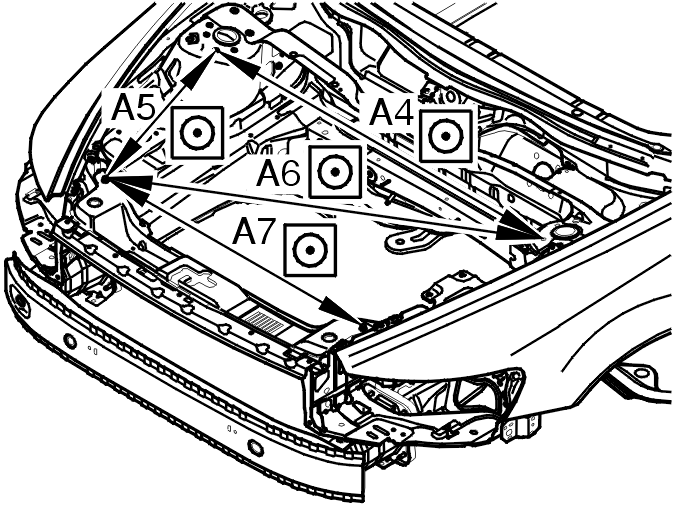

Fig 4: View Of Symbol Dimensions (2 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A4 = 1, 104 mm

A5 = 514 mm

A6 = 1, 104 mm

A7 = 867 mm

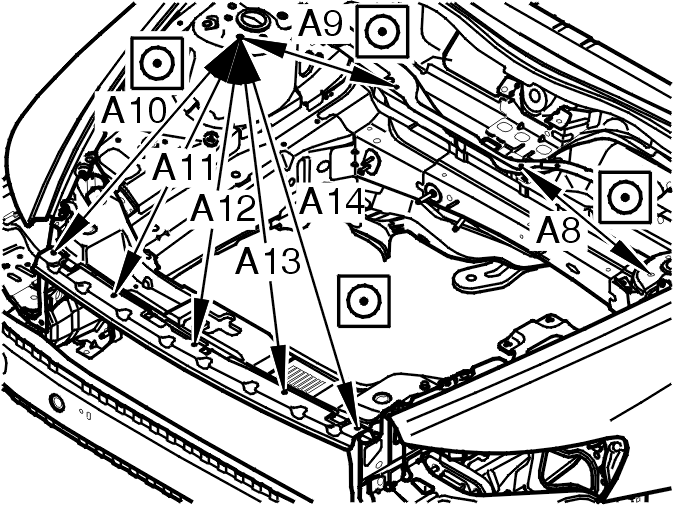

Fig 5: View Of Symbol Dimensions (3 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A8 = 371 mm

A9 = 391 mm

A10 = 670 mm

A11 = 760 mm

A12 = 878 mm

A13 = 1, 014 mm

A14 = 1, 162 mm
