Component Locations

WARNING: This page is about a different car, the 2004 Volvo XC90 and 2003 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

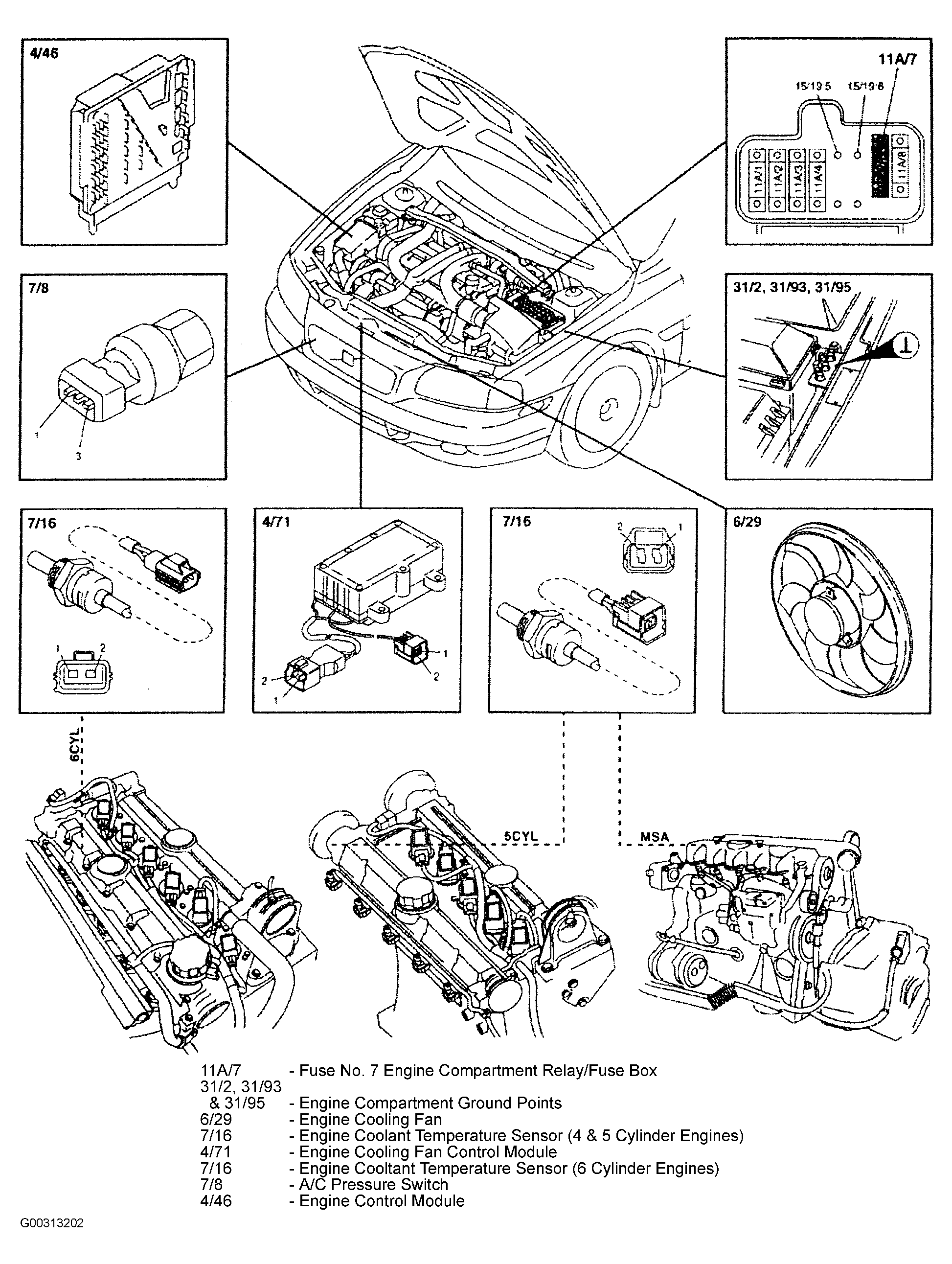

Fig 1: Locating & Identifying Engine Cooling Fan Components
G00313202Courtesy of VOLVO CARS OF NORTH AMERICA.
