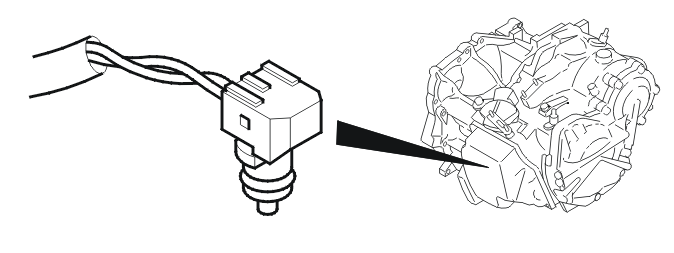

Oil Temperature Sensor
| Component | Note | Resistance (Ω) |
| Oil temperature sensor | Resistance between the temperature sensor terminals. | +10 °C = 5620-7310 Ω |
| +25 °C = 3500 Ω | ||
| +110 °C = 220-270 Ω |
Resistance decreases with increasing temperature.
A test measurement must be taken at both temperatures. This is to establish if the resistance is correct or not.
