Calibrating The Compass

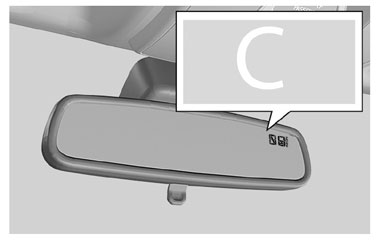

Fig 1: Identifying Calibration Mode

Courtesy of VOLVO CARS CORPORATION

NOTE:

The compass must be calibrated when the rear view mirror is replaced or when CAL appears in the display.

Find a large open space, free of traffic.

Start the vehicle.

Press in the button for at least 6 seconds. CAL should appear in the display.

Then drive at a maximum of 8 km/h in a circle (2-3 times) until the compass direction is displayed in the display again.
