Body Side

Fig 1: View Of Symbol Numbers

Courtesy of VOLVO CARS CORPORATION

Explanation of symbols

1. As measured from center.

2. As measured from one edge.

3. Measurement is indicated from a cut marking.

Fig 2: Identifying Symbol Number 3 Measurement From The Bottom Of The Recess

Courtesy of VOLVO CARS CORPORATION

The measurement takes place from the bottom of the recess. See the illustration. If only one measuring point symbol is shown this applies to both points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

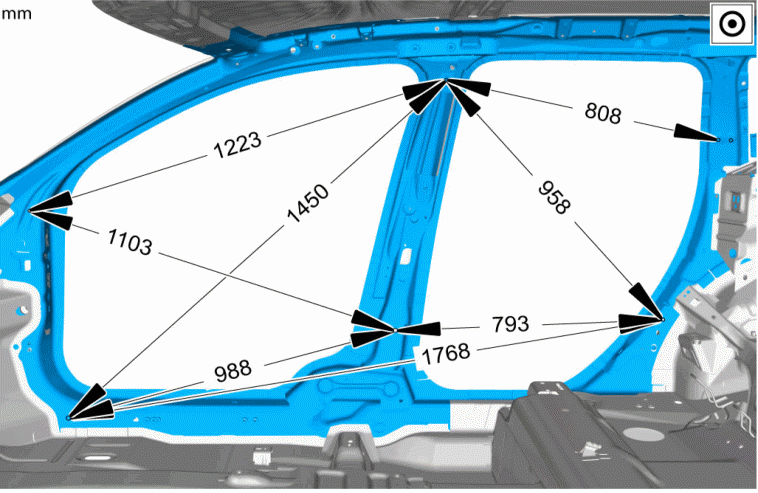

Fig 3: Identifying Body Side Measurement Dimensions (1 of 6)

Courtesy of VOLVO CARS CORPORATION

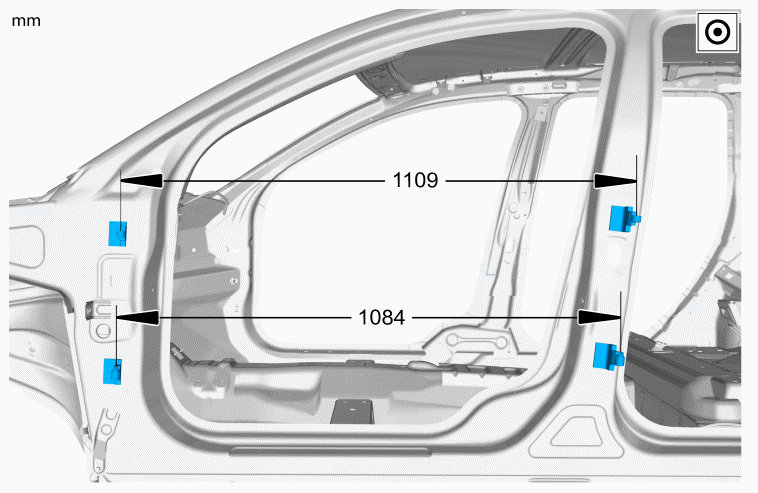

Fig 4: Identifying Body Side Measurement Dimensions (2 of 6)

Courtesy of VOLVO CARS CORPORATION

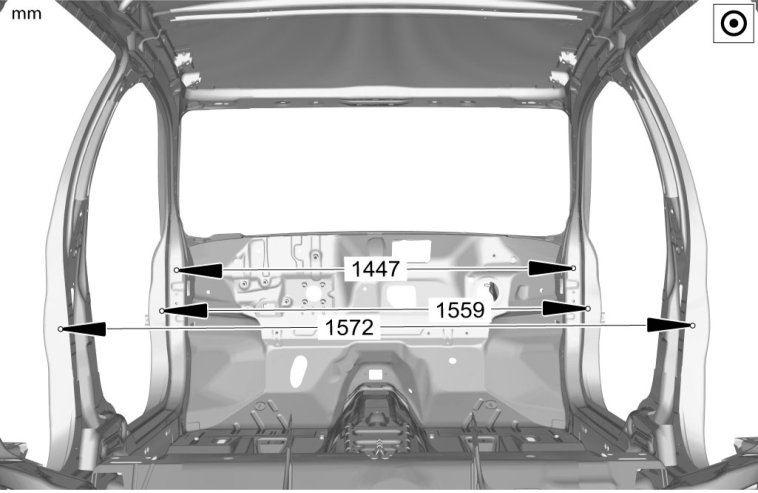

Fig 5: Identifying Body Side Measurement Dimensions (3 of 6)

Courtesy of VOLVO CARS CORPORATION

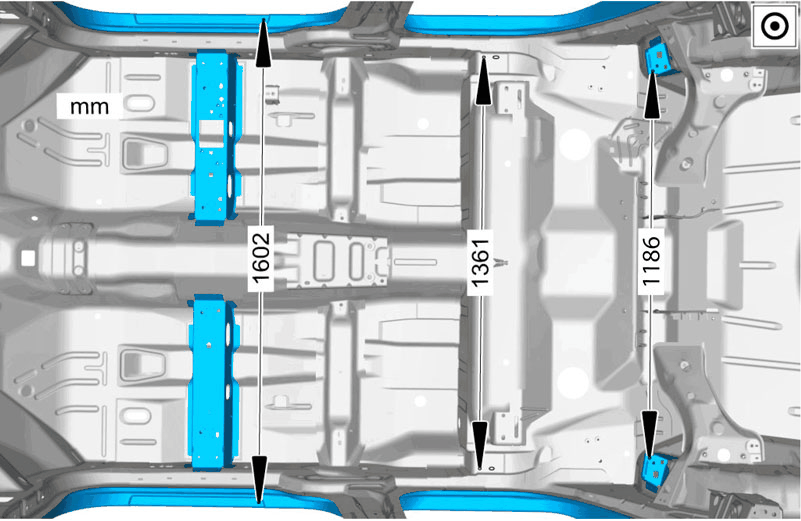

Fig 6: Identifying Body Side Measurement Dimensions (4 of 6)

Courtesy of VOLVO CARS CORPORATION

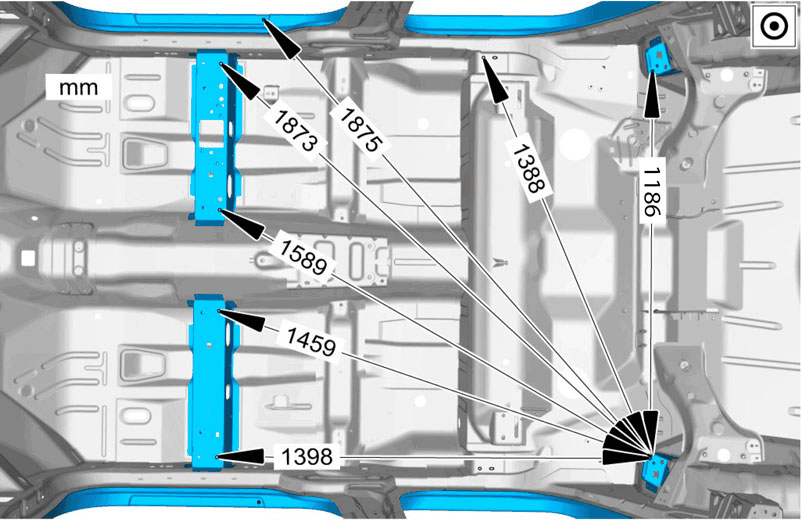

Fig 7: Identifying Body Side Measurement Dimensions (5 of 6)

Courtesy of VOLVO CARS CORPORATION

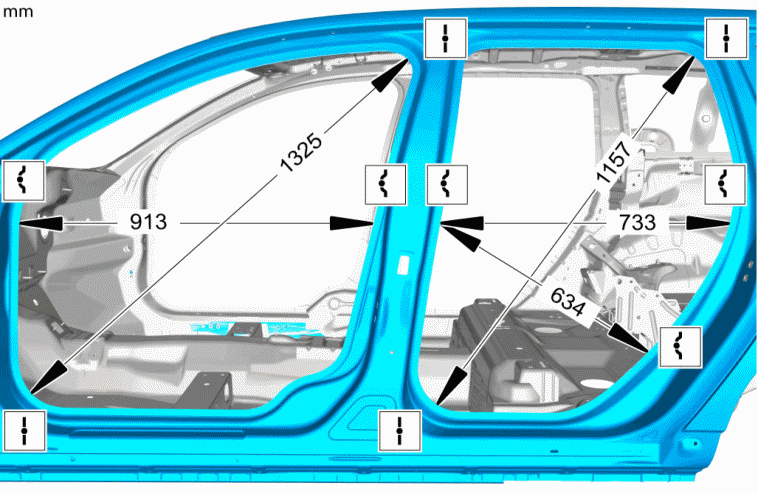

Fig 8: Identifying Body Side Measurement Dimensions (6 of 6)

Courtesy of VOLVO CARS CORPORATION
