TV Receiver, Replacing: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

Remove left-side cargo space side panel, see SIDE PANEL, LOADSPACE

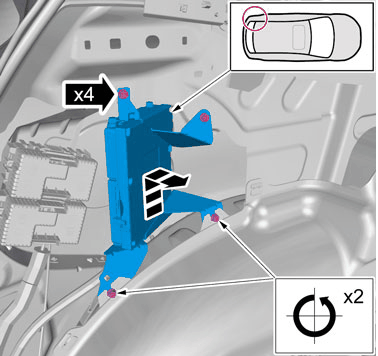

Fig 2: Removing TV Receiver (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

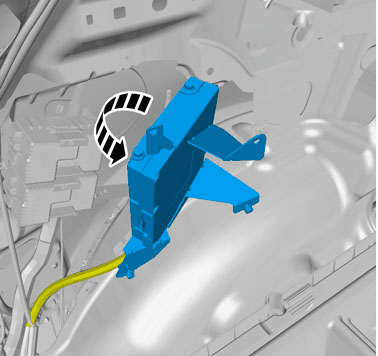

Fig 3: Removing TV Receiver (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

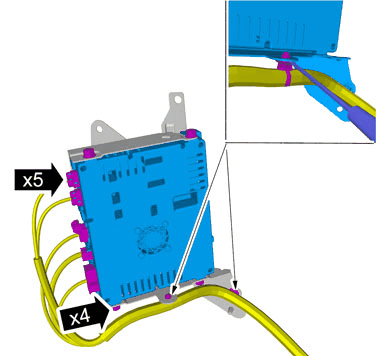

Fig 4: Removing TV Receiver (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M5

5 Nm
