Front Strut And Spring Assembly: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove Front Strut and Spring Assembly, see FRONT STRUT AND SPRING ASSEMBLY

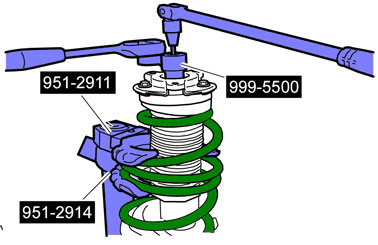

Fig 1: Identifying Special Service Tools

Courtesy of VOLVO CARS CORPORATION

Torque: Bearing front shock absorber to shock absorber

50 Nm

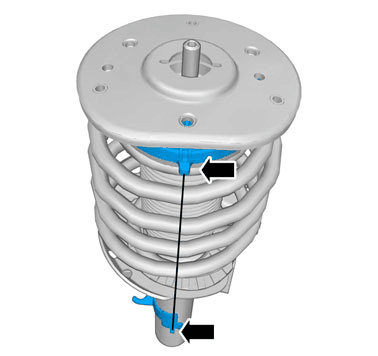

Fig 2: Noting Position Of Components

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of each component before removal.

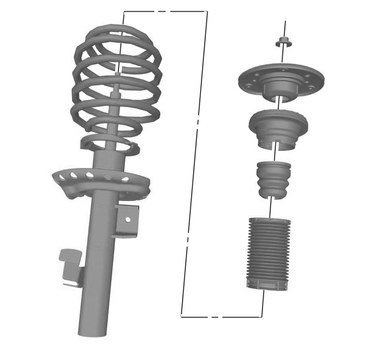

Fig 3: Strut And Spring Assembly

Courtesy of VOLVO CARS CORPORATION
