Component Location, Climate Control Module (CCM)

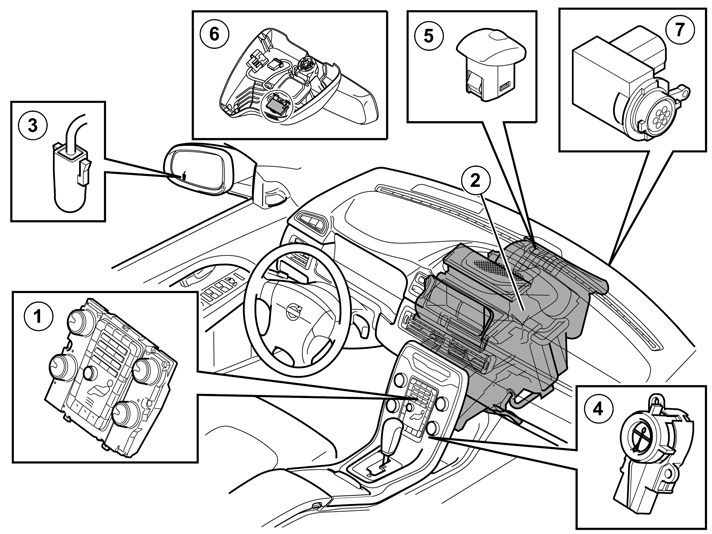

Fig 1: Climate System Component Locations

Courtesy of VOLVO CARS CORPORATION

Pos.	Component
1	Climate control module (CCM)
2	Climate units
3	Outside temperature sensor
4	Passenger compartment temperature sensor
5	Sun sensor
6	Moisture sensor. Depending on vehicle version located in rearview mirror or under casing in roof, by the windscreen.
7	Air quality sensor (AQS)

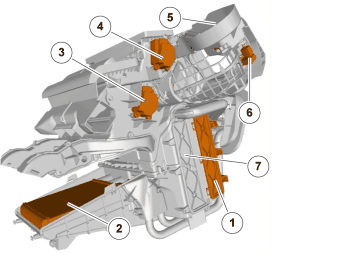

Fig 2: Climate Control Components Location

Courtesy of VOLVO CARS CORPORATION

Pos.	Component
1	Passenger compartment filter
2	Heat exchanger
3	Damper motor module (DMM), temperature right
4	Damper motor module (DMM) defroster
5	Damper motor module (DMM), recirculation
6	Air quality sensor (AQS)
7	Evaporator

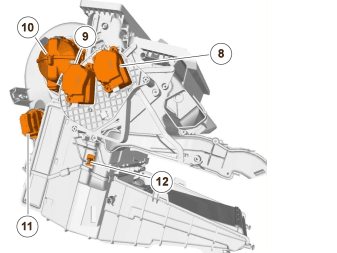

Fig 3: Identifying Climate Control Components

Courtesy of VOLVO CARS CORPORATION

Pos.	Component
8	Damper motor module (DMM) temperature left
9	Damper motor module (DMM) air distribution
10	Fan motor
11	Fan resistor
12	Evaporator temperature sensor
