Coolant Pump (6/73): Terminal

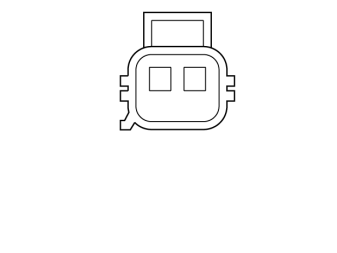

Fig 1: Connector Terminal View
GLL155152Courtesy of VOLVO CARS CORPORATION
Connector terminal Control module terminal Signal type
#1 #3 in 3-pin external connector Coolant pump, control signal
#2 #2 in 3-pin external connector Coolant pump, ground
