Folding In The Door Mirrors

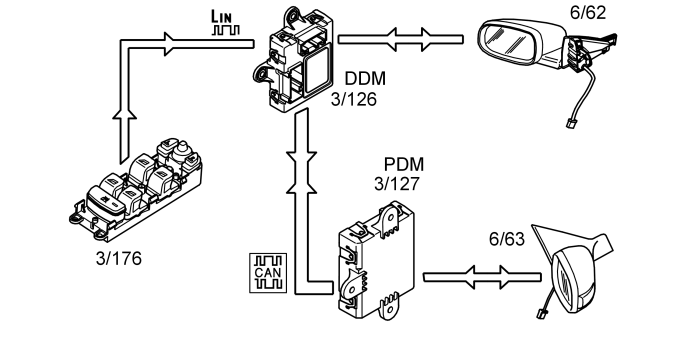

Fig 1: Communication For Folding In Door Mirrors
GLL154466Courtesy of VOLVO CARS CORPORATION

The mirror is retracted by holding both the L and R buttons on the control panel (3/176) on the driver's side. A signal is transmitted via the driver door module (DDM) (3/126) to the passenger door module (PDM) (3/127) via the CAN network. The control modules send the signal on to each door mirror (6/62 and 6/63), which retract or extend the respective mirror.
