Location Of Components

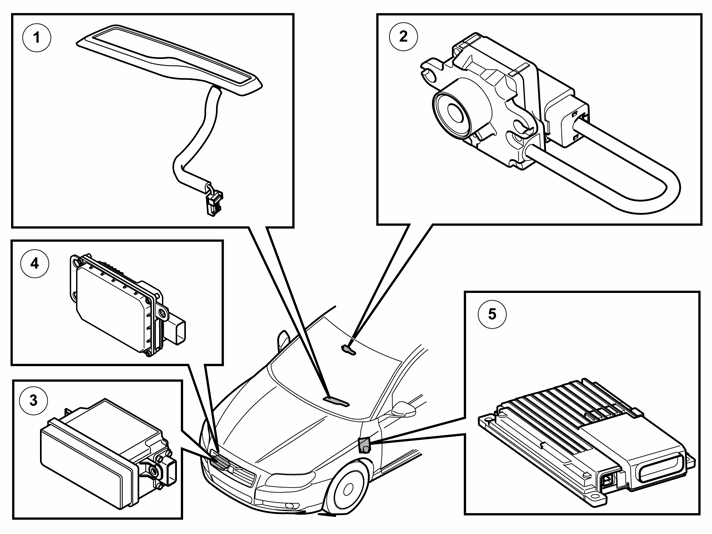

Fig 1: View Of Forward Sensing Module (FSM) With Camera Components
GLL170524Courtesy of VOLVO CARS CORPORATION

Overview

  1. Indicator, visual collision warning
  2. Forward looking camera (FLC)
  3. Forward-sensing radar (FLR) (applies up to and including structure week 200945)
  4. Forward-sensing radar (FLR) (applies from structure week 200946)
  5. Forward Sensing Module (FSM)
