Vehicles With Antenna Unit Installed

Fig 1: Identifying Ignition In OFF Position
GLL166009Courtesy of VOLVO CARS CORPORATION

Remove the following items:

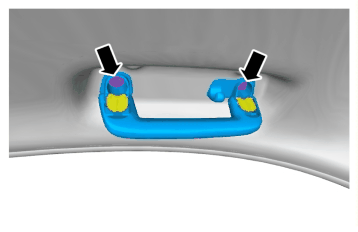

Fig 2: Identifying Roof Grab Handle And Mounting Screws
GLL153104Courtesy of VOLVO CARS CORPORATION

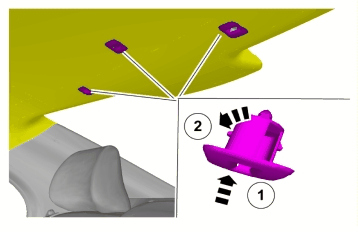

Fig 3: Identifying Rear Headliner Tabs
GLL153105Courtesy of VOLVO CARS CORPORATION

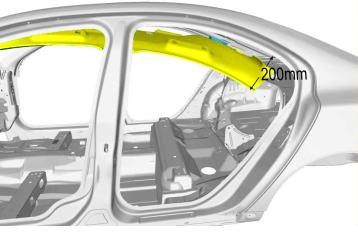

Fig 4: Pulling Headliner Away From Roof
GLL153258Courtesy of VOLVO CARS CORPORATION
CAUTION:

Take extra care not to crease the headliner.

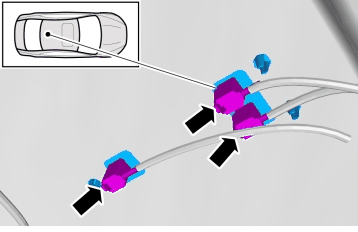

Fig 5: Identifying Connectors
GLL156334Courtesy of VOLVO CARS CORPORATION
