Vehicles Late Version

CAUTION:

Make sure that any disc is removed.

Fig 1: Identifying Ignition In OFF Position
GLL166009Courtesy of VOLVO CARS CORPORATION

Remove center console, see CENTER CONSOLE (2008-2011)or CENTER CONSOLE (2012)

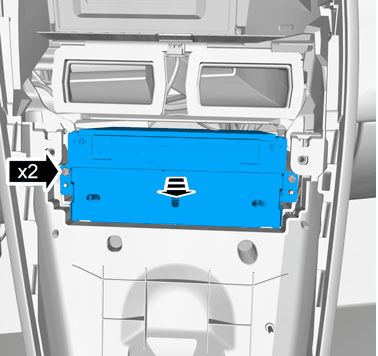

Fig 2: Removing General Audio Player Module
GLL177799Courtesy of VOLVO CARS CORPORATION

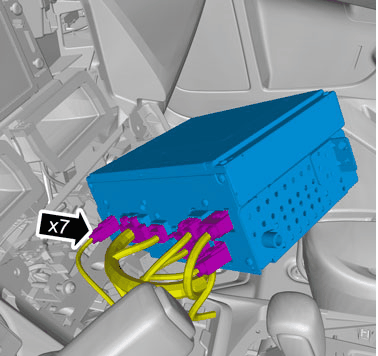

Fig 3: Identifying General Audio Player Module Connectors
GLL177800Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.
