Diagnostic Trouble Code (DTC) Information KVM-B10CE24
Condition

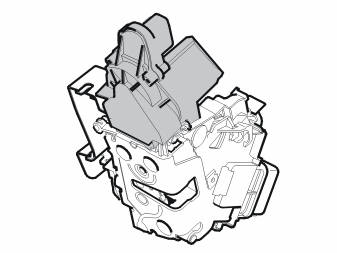

When the spring bolt switch activates, a counter starts.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The lock piston switch has been active for more than 5 minutes.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Closing of spring bolt switch.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- Damaged switch.
- Door handle has been held out for longer than 5 minutes.
- The signal cable is short-circuited to ground.
Fault symptom[s]
- None.
