Signal Description, Climate Control Module (CCM), Connector B

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Volvo XC90, 2013 Volvo XC90, 2012 Volvo XC90, 2011 Volvo XC90, and 2010 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

General

There may be several connections and connectors between the control module and components.

NOTE:

It is important to connect the breakout box and check the ground terminals before taking readings.

U= DC voltage in volts (V) UAC = AC voltage in volts (V)
Ubat = Battery voltage (V) f = Frequency in Hertz (Hz)
Ulow = Voltage approximately 0 V % duty = Duty cycle (pulse ratio) as a percentage (%)
t = Time in milliseconds (ms)

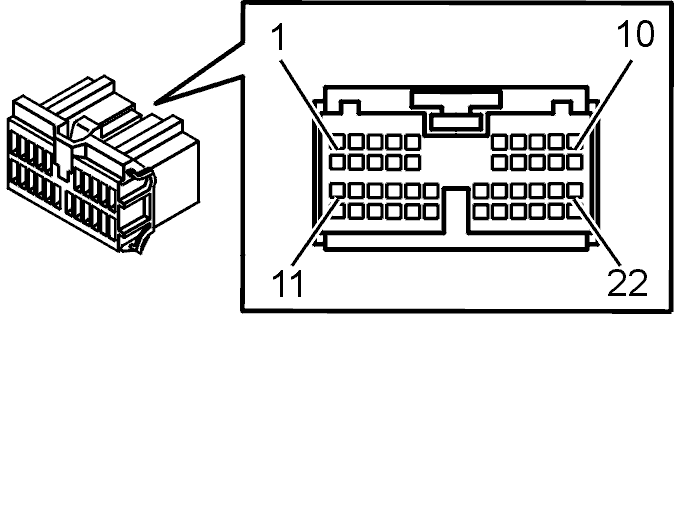

Fig 1: Climate Control Module Connector
GLL104036Courtesy of VOLVO CARS CORPORATION
Breakout box terminal Terminal Connecting the component Signal type Ignition on Engine idling Other
#1 #B1 terminal #2 evap Signal, evaporator temperature sensor 0.1-4.85 V 0.1-4.85 V ECC, MCC (Ulow STD)
#2 #B2 - - -V - -
#3 #B3 terminal #3 air quality sensor Signal, air quality sensor Pulse width modulation (PWM) signal, 80 Hz. 0.4-12 V. Pulse width modulation (PWM) signal, 80 Hz. 0.4-12 V. ECC,
#4 #B4 terminal #1 sun sensor Signal, sun sensor 0.78-4.62 V 0.78-4.62 V ECC, MCC (Ulow STD)
#5 #B5 terminal #5 sun sensor, terminal #5 air quality sensor Signal ground, sun sensor, air quality sensor and alarm LED Ulow Ulow Electronic climate control
#6 #B6 - - - - -
#7 #B7 - - - - -
#8 #B8 - -
#9 #B9 - -
#10 #B10 - -
#11 #B11 terminal #3 damper motors Signal ground, damper motor control MA1+ ~Ulow ~Ulow
#12 #B12 terminal #4 damper motors Signal ground, damper motor control MA1- ~Ulow ~Ulow
#13 #B13 terminal #5 damper motors Signal ground, damper motor control MA2+ ~Ulow ~Ulow
#14 #B14 terminal #6 damper motors Signal ground, damper motor control MA2- ~Ulow ~Ulow
#15 #B15 terminal #3 evap Signal ground, evaporator temperature sensor ~Ulow ~Ulow Electronic climate control (ECC), Manual climate control (MCC)
#16 #B16 terminal #1, air quality sensor Power supply, air quality sensor 12 V 12 V Electronic climate control
#17 #B17 terminal #3 sun sensor Signal, alarm LED (out). Internally directly connected to terminal #A7. 1.9 V 1 Hz 10% duty 1.9 V 1 Hz 10% duty Electronic climate control
#18 #B18 terminal #1 damper motor temp left Signal, damper motor temperature left 0-Ubat 0-Ubat Quadratic signal when the motor is running
#19 #B19 terminal #1 damper motor temp right Signal, damper motor temperature right 0-Ubat 0-Ubat Quadratic signal when the motor is running
#20 #B20 #1 damper motor def Signal, damper motor, defroster 0-Ubat 0-Ubat Quadratic signal when the motor is operating (ECC, MCC)
#21 #B21 terminal #1 damper motor rec Signal, damper motor recirculation 0-Ubat 0-Ubat Quadratic signal when the motor is running
#22 #B22 terminal #1 damper motor floor/vent (ECC)
terminal #1 damper motor air distribution (MCC, STD)
Signal, damper motor floor/ventilation (ECC), air distribution (MCC, STD) 0-Ubat 0-Ubat Quadratic signal when the motor is running
