Fuel Injector: Installation

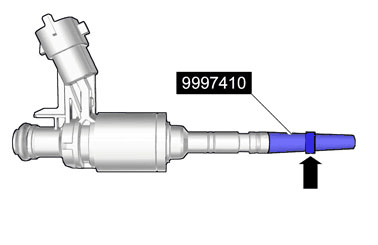

Fig 1: Installing Fuel Injector (1 Of 3)

GLL179551

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

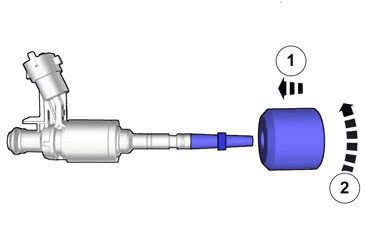

Fig 2: Installing Fuel Injector (2 Of 3)

GLL179552

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only use moderate force.

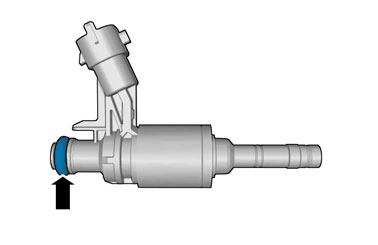

Fig 3: Installing Fuel Injector (3 Of 3)

GLL172162

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

To install, reverse the removal procedure.

Reset using VIDA (Volvo scan tool)
