Window, Front Door

Operation Number(s):  84406-2

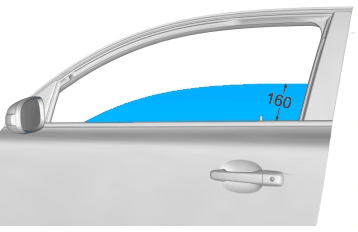

Fig 1: Removing Front Door Window (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

Remove door panel. See PANEL FRONT DOOR

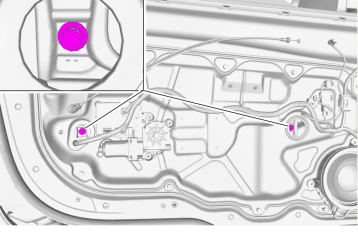

Fig 2: Removing Front Door Window (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

Torque:  Window to power window mechanism (front side door)

8 Nm

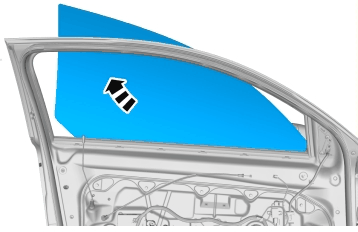

Fig 3: Removing Front Door Window (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

Install in reverse order.

Initiate window lift using VIDA (Volvo scan tool).
