Location Of Components

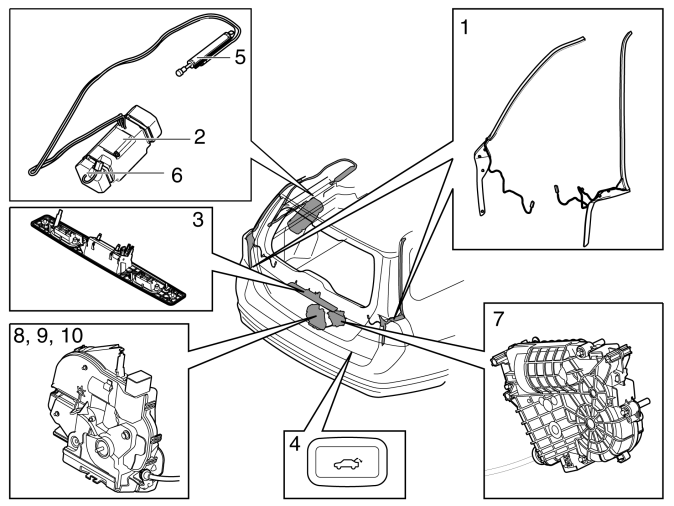

Fig 1: Identifying Power-Operated Tailgate Module (POT) Components
GLL161260Courtesy of VOLVO CARS CORPORATION
  1. Clamping sensors (not vehicles manufactured after structure week 200947)
  2. Hall sensor
  3. Switch handle
  4. Switch closing tailgate
  5. Ram and cylinder
  6. Hydraulic pump
  7. Motor closing, tailgate
  8. Motor unlocking
  9. Sensor 1 (inner lock position)
  10. Sensor 2 (outer lock position)
