Remove / Install

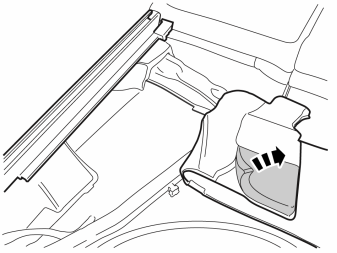

Fig 1: View Of Cargo Compartment Floor's Insulation

Courtesy of VOLVO CARS CORPORATION

Fold up the cargo compartment floors insulation. Remove the foam from the insulation at the perforation.

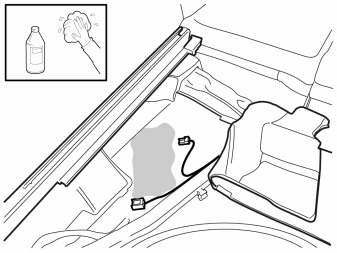

Fig 2: Clean Cargo Compartment Floor

Courtesy of VOLVO CARS CORPORATION

Clean the area of the cargo compartment floor as shown in the illustration. Use isopropanol .
Wipe dry.

Fig 3: Clean Area Of The Trailer Module (TRM)

Courtesy of VOLVO CARS CORPORATION

Clean the area of the Trailer module (TRM) as shown in the illustration, use isopropanol .
Wipe dry.

Fig 4: Identifying Velcro Straps

Courtesy of VOLVO CARS CORPORATION

Take the two Velcro straps from the kit and press them together edge to edge.

Fig 5: Cut Off The Velcro Straps

Courtesy of VOLVO CARS CORPORATION

Cut off the Velcro straps in the center.

Fig 6: Removing Protective Film From Velcro

Courtesy of VOLVO CARS CORPORATION

Remove the protective backing tape from one side of the Velcro straps.

Fig 7: Press Velcro Strips Onto Control Module

Courtesy of VOLVO CARS CORPORATION

Press the Velcro strips onto the control module in the positions shown in the illustration.

Fig 8: Remove The Velcro Protective Tape

Courtesy of VOLVO CARS CORPORATION

Remove the protective tape from the Velcro fasteners.

Illustration A

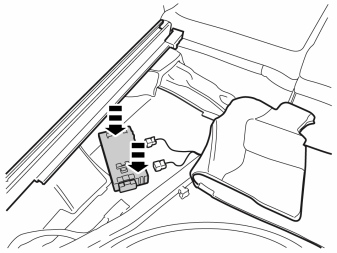

Fig 9: Locating Control Module Onto The Cleaned Surface

Courtesy of VOLVO CARS CORPORATION

Press the control module onto the cleaned surface.

Illustration B

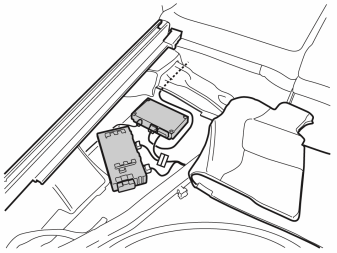

Fig 10: Locating Control Module For Parking Assistance Camera (PAC)

Courtesy of VOLVO CARS CORPORATION

Applies to cars with parking camera

The image shows the location of the control module for the parking assistance camera (PAC), together with the Trailer Module (TRM), under the insulation at the front edge on the left-hand side of the cargo compartment.

If the car is equipped with a parking assistance camera, ensure that the Trailer Module (TRM) is positioned so that it and the cables do not rub against the control module of the parking assistance camera.

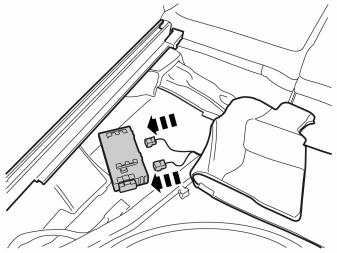

Fig 11: Locating Gray 2 Pin And Green 5 Pin

Courtesy of VOLVO CARS CORPORATION

Connect the gray 2 pin and green 5 pin pre-routed connector to the trailer module (TRM).

Applies to cars with parking camera

Connect the 5-pin connector in the adapter cable for the control module for the parking assistance camera (PAC), to the Trailer Module (TRM), see illustration.

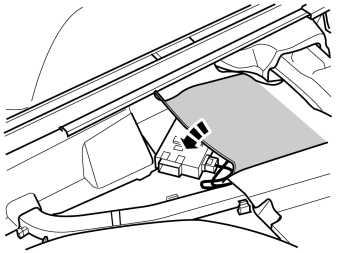

Fig 12: View Of Parking Assistance Camera (PAC) Module

Courtesy of VOLVO CARS CORPORATION

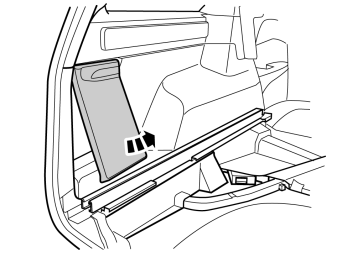

Fig 1: Remove Fuse Holder Panel

Courtesy of VOLVO CARS CORPORATION

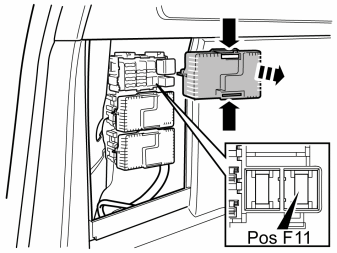

Fig 2: Locating Socket Position F11

Courtesy of VOLVO CARS CORPORATION

Press in the catches on the cover of the upper module and remove it.
Take a 40A fuse from the kit and install in position F11 in the module.
Reinstall the cover.

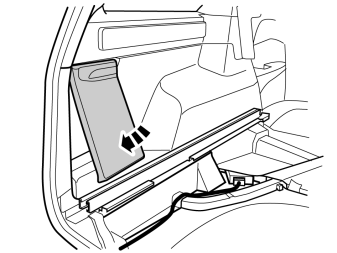

Fig 3: Installing Fuse Holder Panel

Courtesy of VOLVO CARS CORPORATION

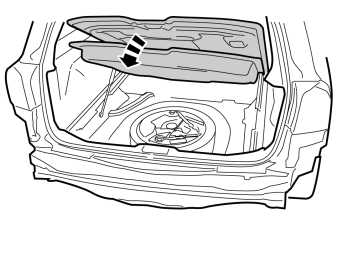

Fig 4: Lowering Trunk Compartment Floor Panel

Courtesy of VOLVO CARS CORPORATION
