Control Module, Information And Entertainment, Removal And Installation: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS CORPORATION

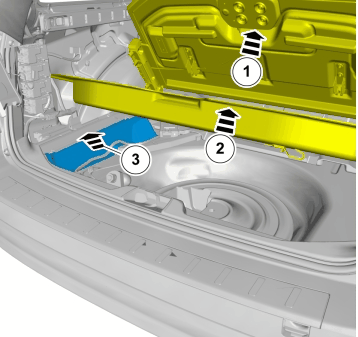

Remove the left-hand side panel in the cargo compartment, see SIDE PANEL LOADSPACE

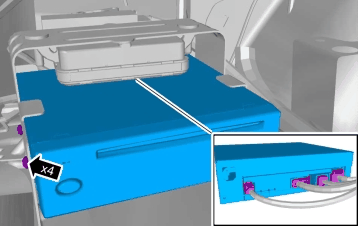

Fig 2: Removing Information And Entertainment Control Module (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

Fig 3: Removing Information And Entertainment Control Module (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6

10 Nm
