Body Side

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Explanation of dimensions

Symbol 1 means that the measurement is taken from the center.

Symbol 2 means that the measurement is taken from the edge.

Courtesy of VOLVO CARS CORPORATION

Symbol 3 means that the measurement is from a cut mark. Measurement is made from the bottom of the recess. Refer to the illustration above.

If only one measuring point symbol is displayed, the symbol applies to both points. Otherwise the symbols are shown on each side of the dimension in the graphic.

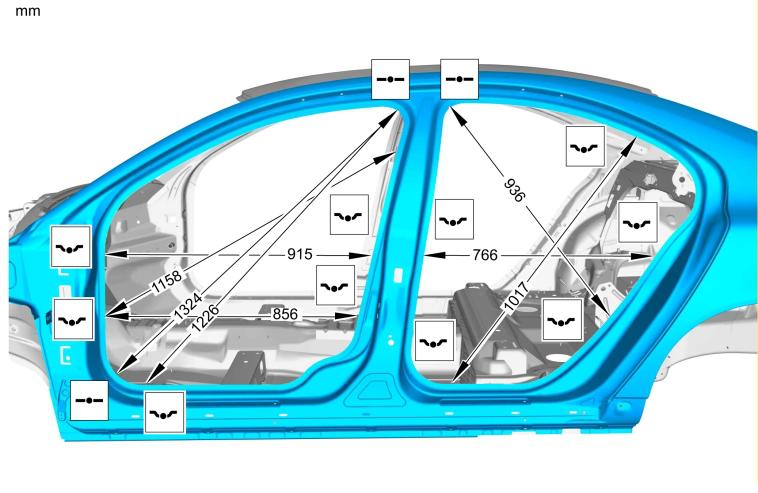

Fig 2: Door Opening Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION

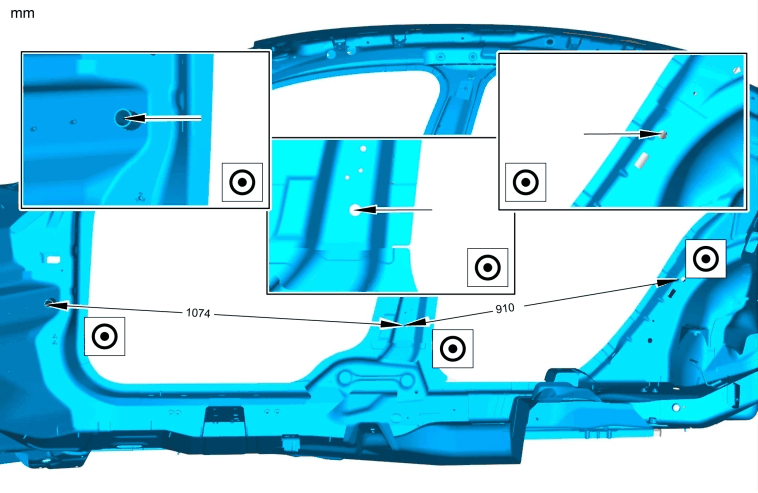

Fig 3: Interior Body Panel Position Dimensions And Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

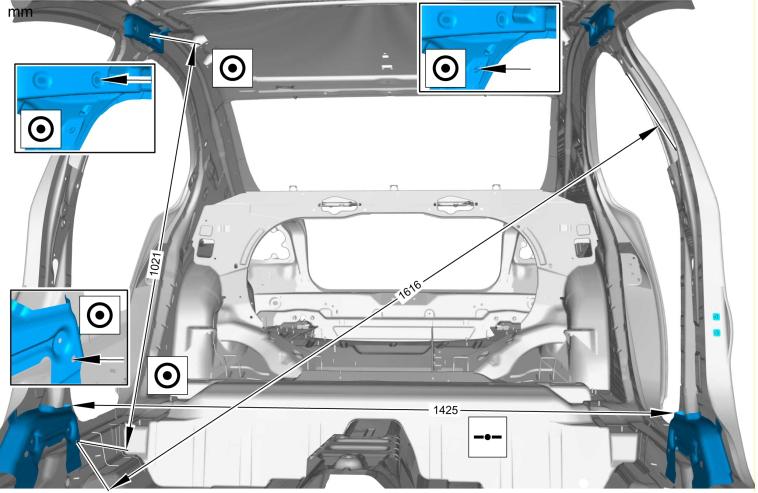

Fig 4: Interior Body Panel Position Dimensions And Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

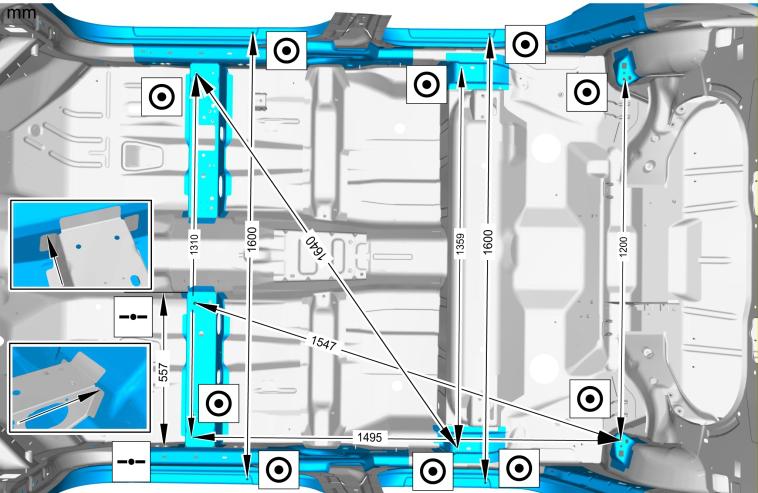

Fig 5: Interior Body Panel Position Dimensions And Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

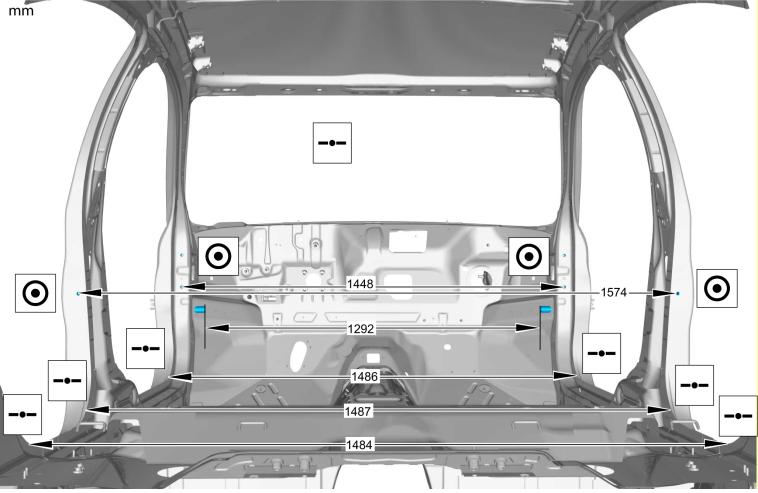

Fig 6: Interior Body Panel Position Dimensions And Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS CORPORATION

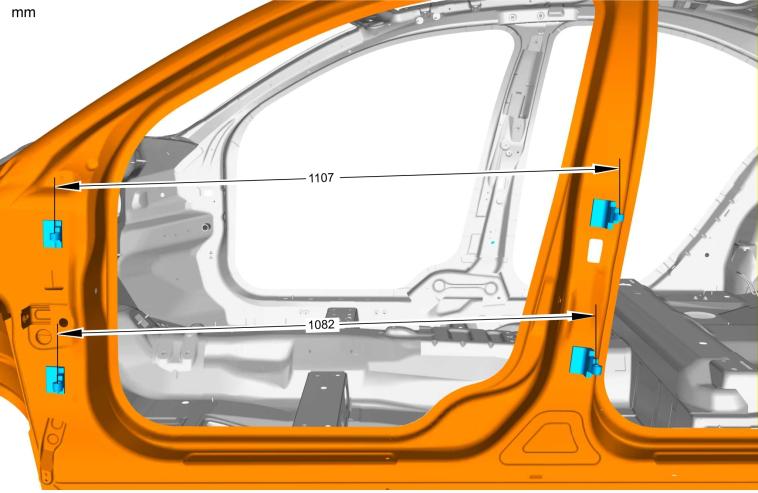

Fig 7: Door Hinge Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION
