Collision Sensor SRS System

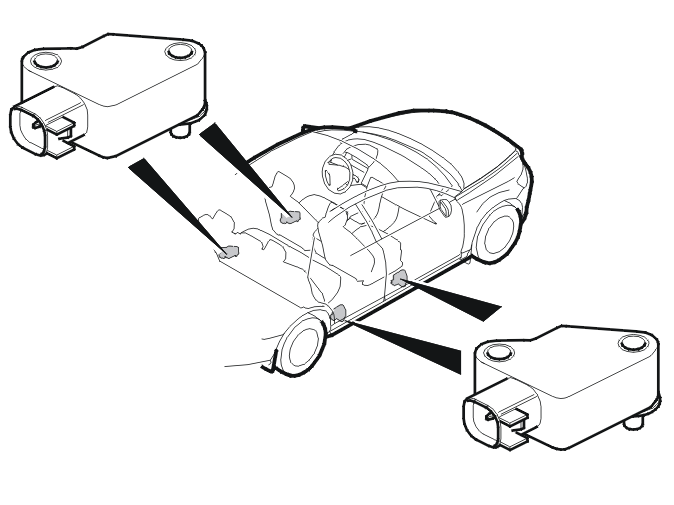

Fig 1: Identifying Side Collision Sensors

Courtesy of VOLVO CARS CORPORATION

The collision sensors for the SRS system are located in the B and C-pillars.

see COLLISION SENSOR, B-PILLAR .

see COLLISION SENSOR, C-PILLAR .

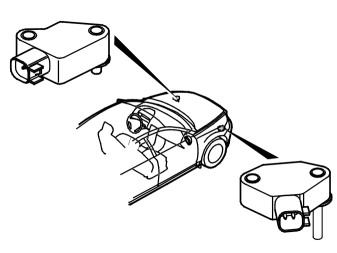

Fig 1: Identifying Front Collision Sensors

Courtesy of VOLVO CARS CORPORATION

see COLLISION SENSOR .
