P3 Software Download Guide (TJ32688.1.1)
WARNING: This page is about the S80 T-6, which is a different variant/trim than selected.
Publication date: 2017-04-24Reference number: TJ32688.1.1
P3 SOFTWARE DOWNLOAD GUIDE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ32688.1.1, Date of Issue:
April 24, 2017
| VOLVO: | 2007-2016 S80; 2011 and beyond S60; 2008-2010 V70; 2008 and beyond XC70; 2016 and beyond S60CC, S60 Inscription; 2014 and beyond V60; 2010 and beyond XC60, 2015 and beyond V60CC |
| SECTION: | Software |
| GROUP: | 3018 |
ATTACHMENT
ATTACHMENT
| File Name | File Size |
|---|---|

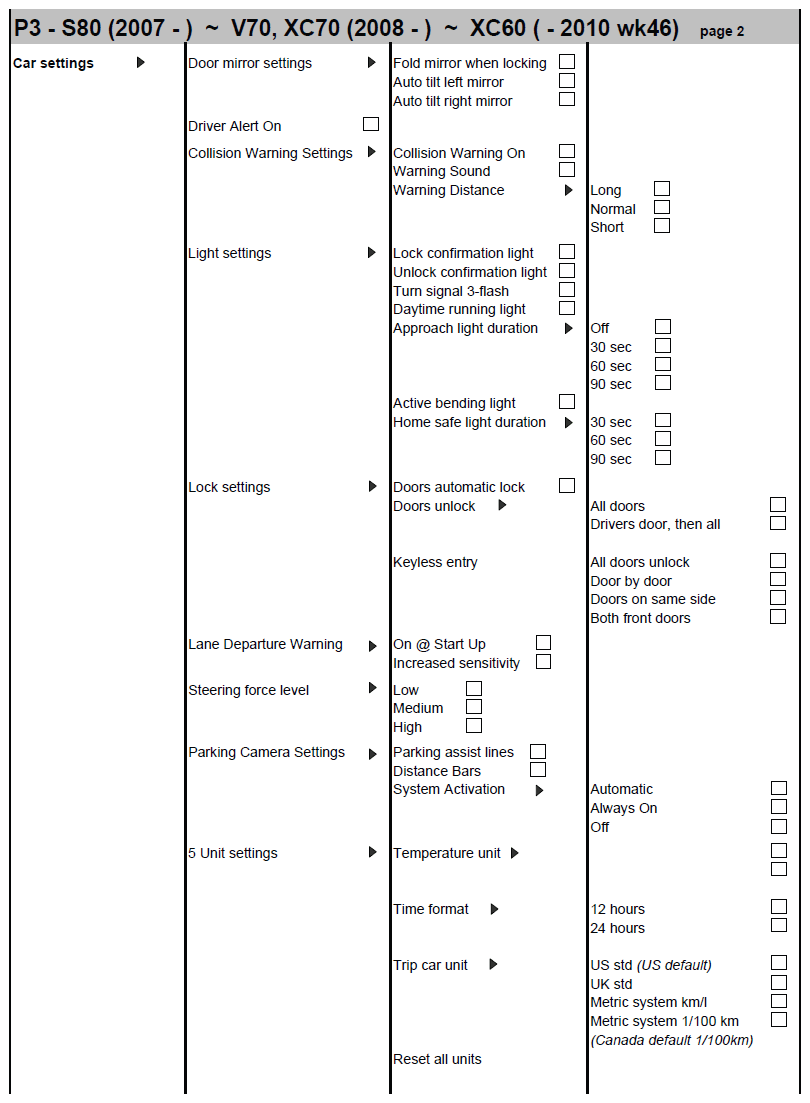

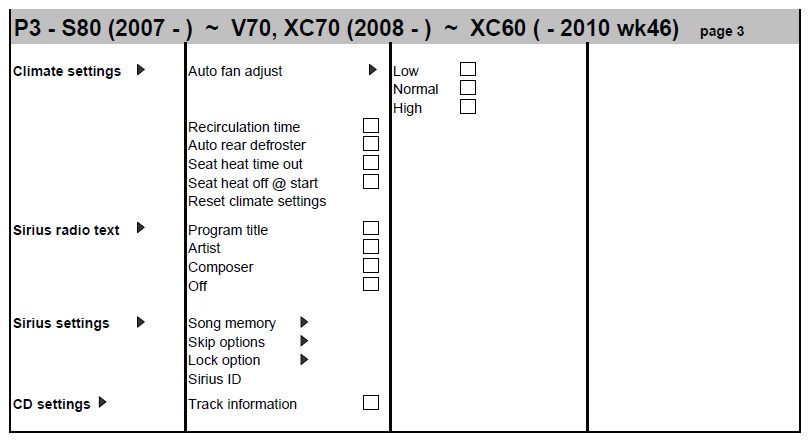

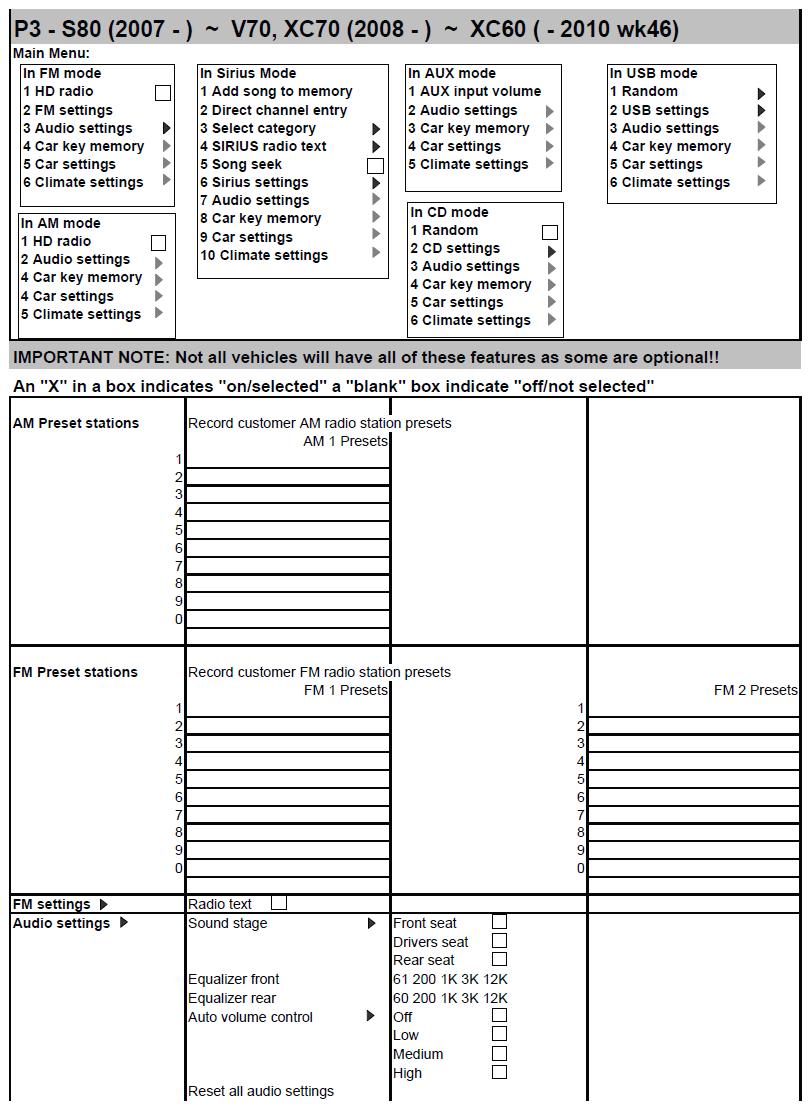

| P3_Non_Sensus_Customer_Settings.pdf | 0.0178 MB |

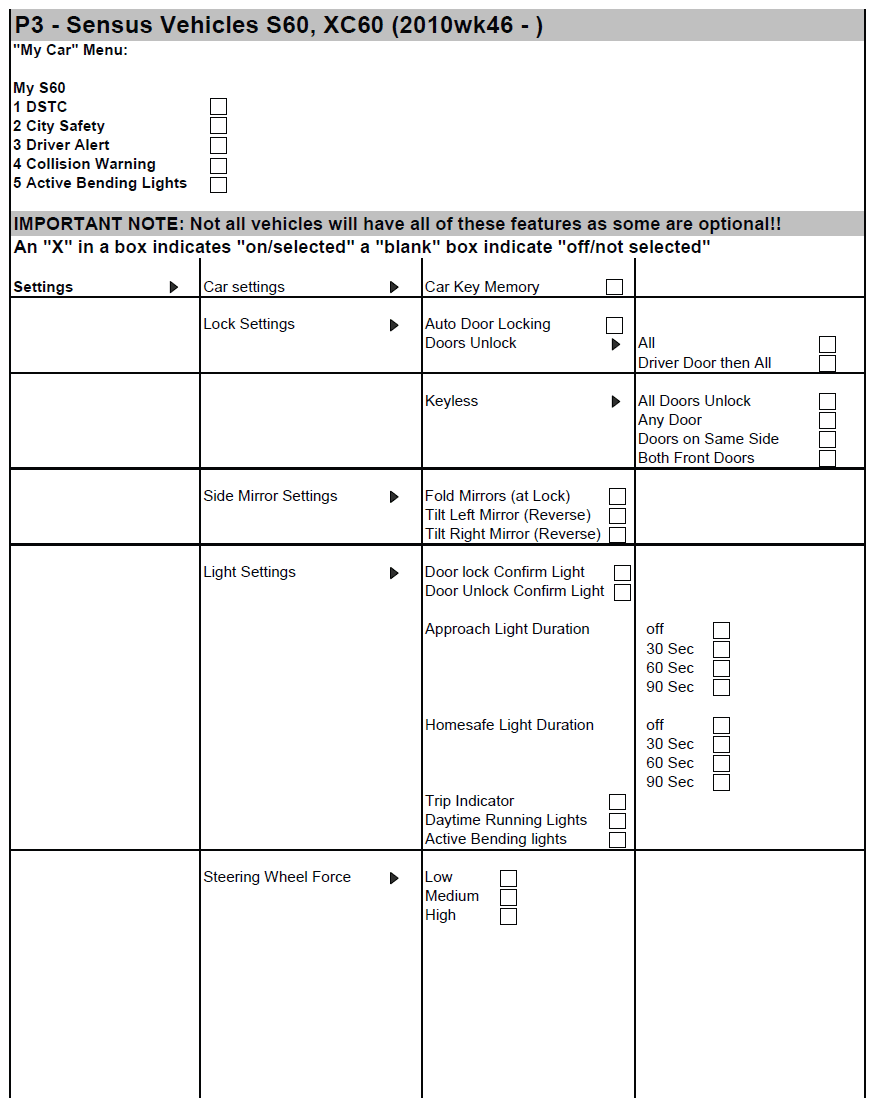

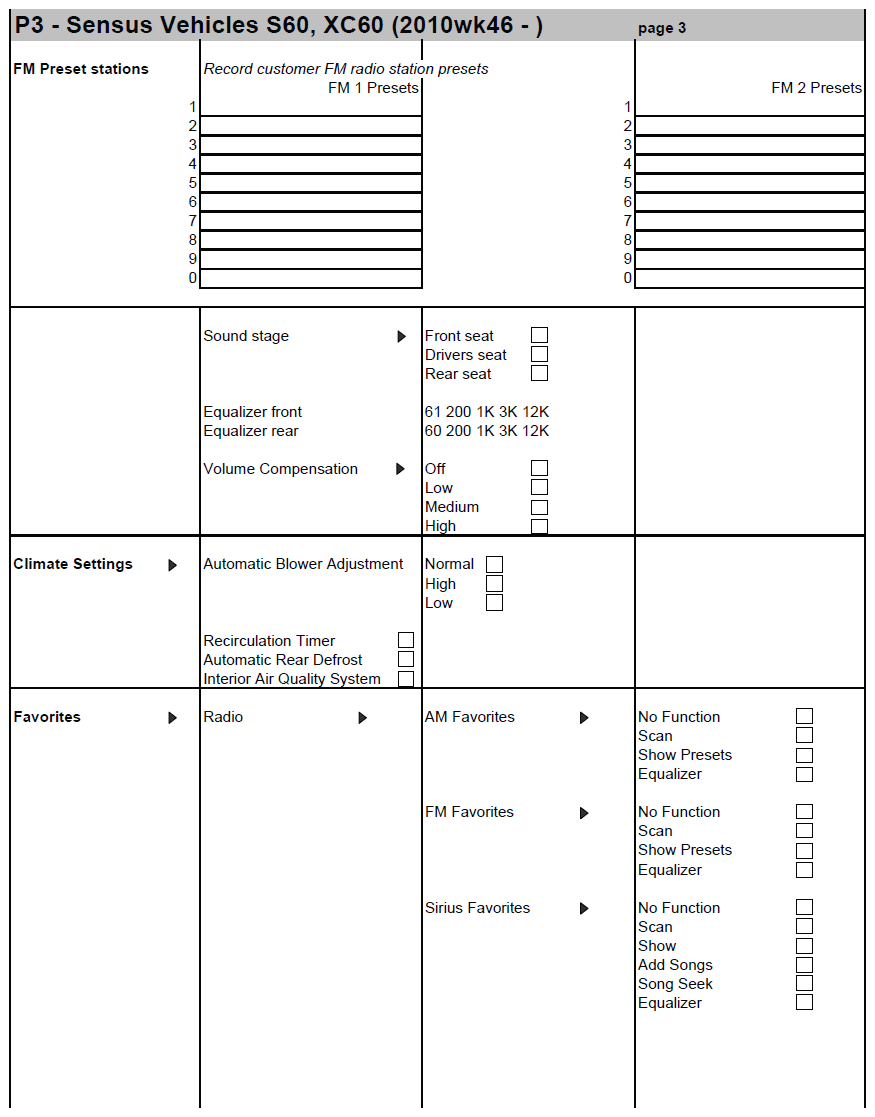

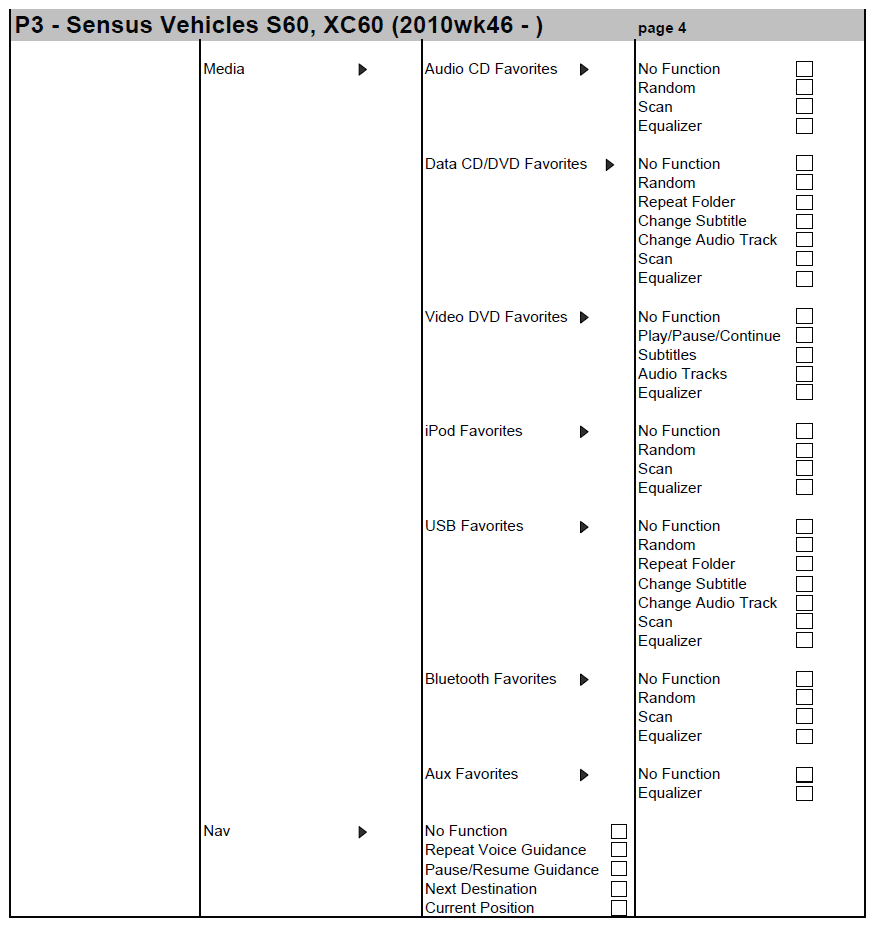

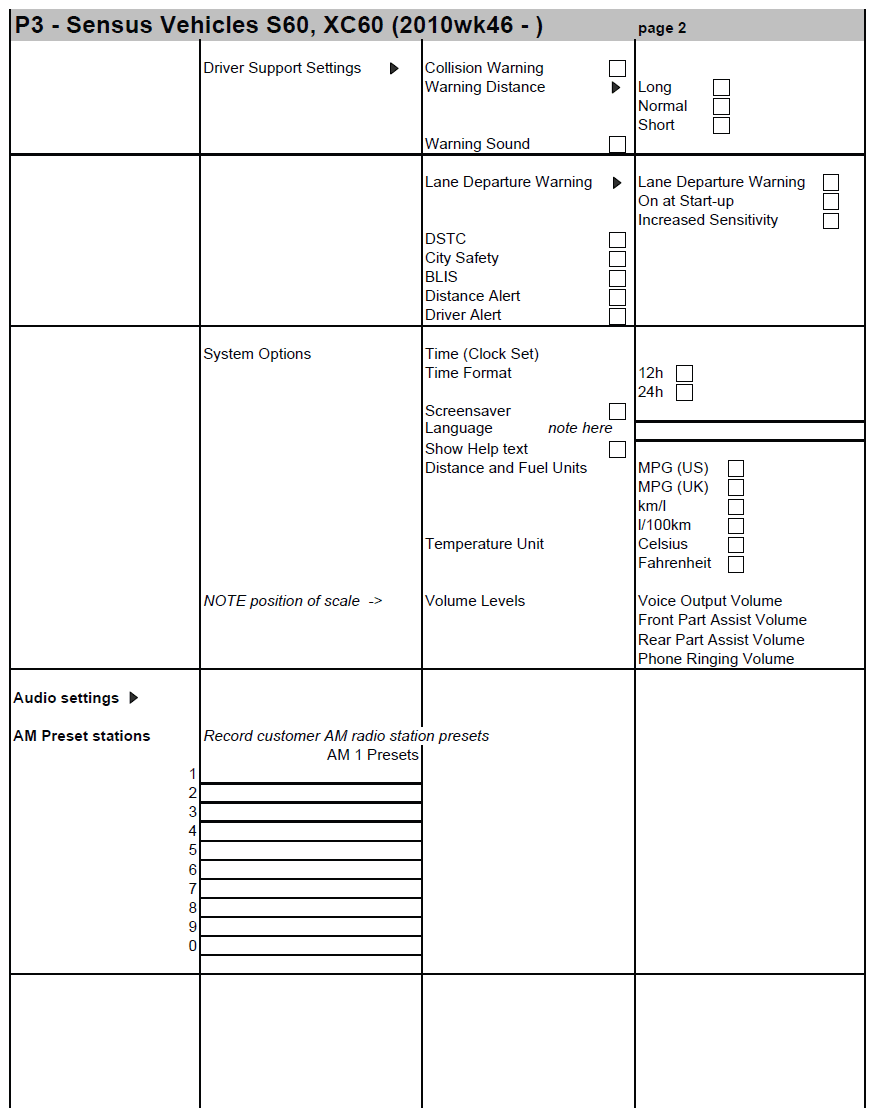

| P3_Sensus_Customer_Settings.pdf | 0.0173 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2007-2016 | - | 0-0 | |||||||
| 134 | 2011-9999 | - | 0-0 | |||||||
| 135 | 2008-2010 | - | 0-0 | |||||||
| 136 | 2008-9999 | - | 0-0 | |||||||
| 137 | 2016-9999 | - | 0-0 | |||||||
| 137 | 2016-9999 | - | 0-0 | |||||||
| 138 | 2016-9999 | - | 0-0 | |||||||
| 155 | 2014-9999 | - | 0-0 | |||||||
| 156 | 2010-9999 | - | 0-0 | |||||||
| 157 | 2015-9999 | - | 0-0 |
CSC CUSTOMER SYMPTOM CODES
CSC CUSTOMER SYMPTOM CODES
| Code | Description |
|---|---|
| 2V | Technician information/Software/Vehicle communication/Not for warranty use |
| 3L | Technician information/Repair information/Not for warranty use |
VST OPERATION NUMBER
-
DTC DIAGNOSTIC TROUBLE CODES
Rows beginning with * are modified
NOTE:
If using a printed copy of this Technical Journal, first check for the latest online version.
TEXT
-
DESCRIPTION
Software downloads should be initiated by a customer complaint or a Quality Bulletin. The customer complaint should be clearly stated in the repair text. Warranty claims without this description may be rejected.
Service 2.0 Upgrade should be performed at every workshop visit if visible in the VIDA Software Upgrades list. Service 2.0 cannot be claimed under warranty.
PDS Upgrade should be performed at Retail Car Customer Delivery.
Any remaining software visible in VIDA after the PDS Upgrade does not need to be downloaded unless specified in a Quality Bulletin or PDS Plus action.
PDS = Pre Delivery Service
SERVICE
n/a
VEHICLE REPORT
n/a
Example of P3 (non-Sensus) block offsets
P3 (NON-SENSUS) BLOCK OFFSETS
| The following settings are accomplished with VIDA/Vehicle communication/Node XXX/advanced | |
|---|---|
| "block offsets" | Value (on/off) |
| Climate Control | |
| Seat heating. | |
| Seat ventilation. | |
| Time setting seat heating | |
