Crankshaft Position Sensor (CKP) (V8): Removal

Remove battery. See BATTERY (2007-09) or BATTERY (2010)

Fig 1: Identifying Assembly Fasteners

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

Fig 2: Identifying Crankshaft Position Sensor (CKP) Removal (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

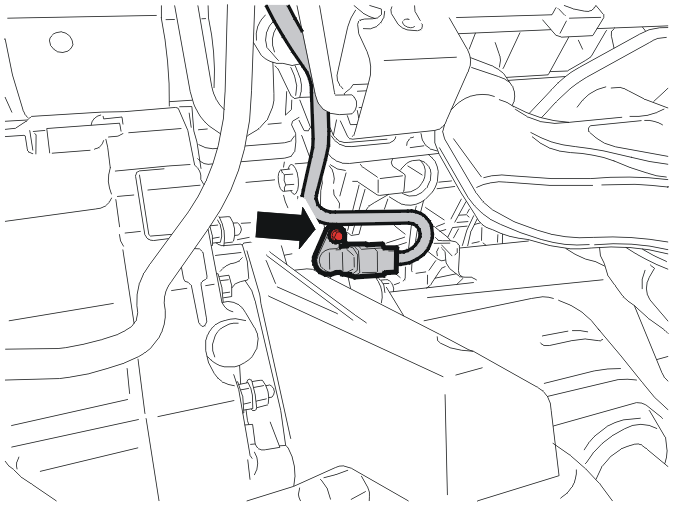

Fig 3: Identifying Crankshaft Position Sensor (CKP) Removal (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
