Roof Panel: Installation

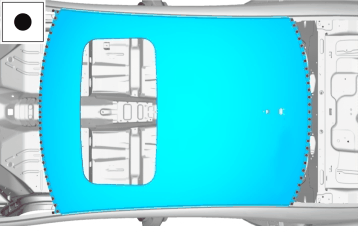

Fig 1: Roof Panel Installation Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

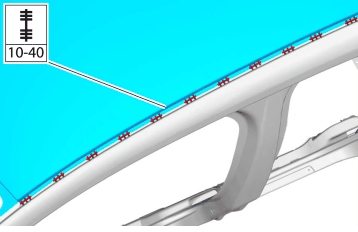

Fig 2: Roof Panel Installation Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

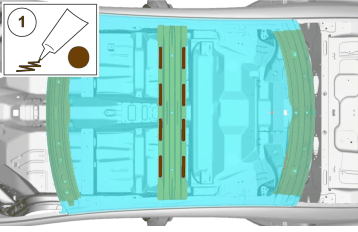

Fig 3: Roof Arch Two-Component Foam Application Areas

Courtesy of VOLVO CARS CORPORATION

Use:  2-component foam, 3M 08463

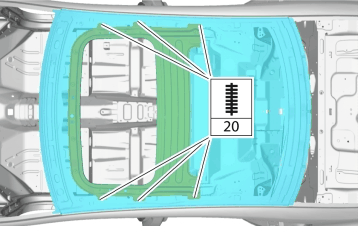

Fig 4: Sunroof Frame Installation Weld Locations

Courtesy of VOLVO CARS CORPORATION

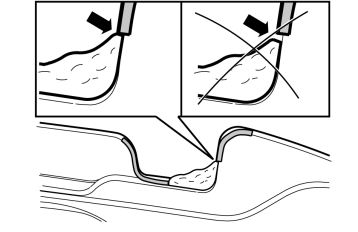

Fig 5: Roof Panel Sealant Application Area Masking Specifications

Courtesy of VOLVO CARS CORPORATION

Use:  Masking tape, 9511050-8

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; see RUSTPROOFING .

Install the roof section; see ROOF SECTION, EXPOSING .
