Body Sill Reinforcement

Materials:
Designation	Part number
Seal	681 7640

For information on welding body components, see WELDING, GENERAL .

Remove components. See SIDE SECTION, EXPOSING .

Determine the extent of the damage. See BODY SIDE .

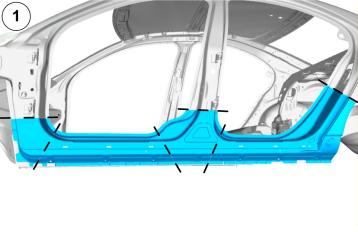

Fig 1: Sill Panel Cut Locations (1 Of 3)

GLL157297

Courtesy of VOLVO CARS CORPORATION

Alternative cutting points (1).

Fig 2: Sill Panel Cut Locations (2 Of 3)

GLL157298

Courtesy of VOLVO CARS CORPORATION

If the complete body sill reinforcement is replaced, the B-post must be replaced; refer to B-POST .

Alternative cutting points (2)

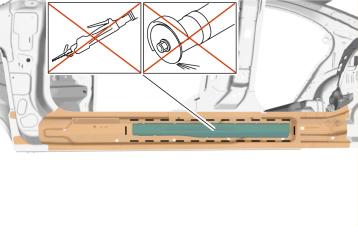

Fig 3: Sill Panel Cut Locations (3 Of 3)

GLL157299

Courtesy of VOLVO CARS CORPORATION

When joining, drill loose and weld with plug welding

The pipe must not be joined.

Fig 4: Sill Panel Reinforcement Weld Locations (1 Of 4)

GLL157300

Courtesy of VOLVO CARS CORPORATION

Fig 5: Sill Panel Reinforcement Weld Locations (2 Of 4)

GLL157301

Courtesy of VOLVO CARS CORPORATION

When joining, reinforce with the spare part following the illustrated principle. This applies to all joints in the reinforcement.

Fig 6: Sill Panel Reinforcement Weld Locations (3 Of 4)

GLL157302

Courtesy of VOLVO CARS CORPORATION

Fig 7: Sill Panel Reinforcement Weld Locations (4 Of 4)

GLL157303

Courtesy of VOLVO CARS CORPORATION

Install the B-post. See B-POST .

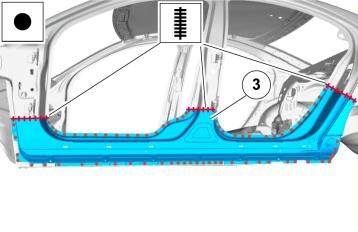

Fig 8: Outer Sill Panel Installation Weld Locations

GLL157304

Courtesy of VOLVO CARS CORPORATION

Use: Seal, 681 7640 .

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; see RUSTPROOFING .

Install components. See SIDE SECTION, EXPOSING .
