Body Side: A-Pillar

Materials:
Designation	Part number
Seal	6817640

NOTE:

Removal steps in this procedure may contain installation details.

For information about how the bodywork components are welded, refer to WELDING, GENERAL .

Remove components; see SIDE SECTION, EXPOSING .

Determine the extent of the damage. See BODY SIDE .

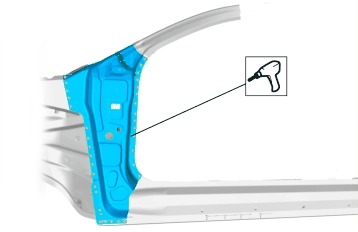

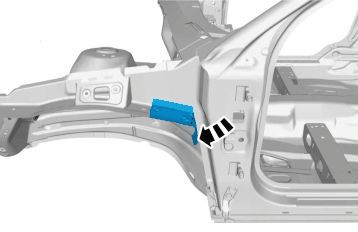

Fig 1: A-Pillar Removal Weld Locations

GLL155625

Courtesy of VOLVO CARS CORPORATION

GLL155626

Courtesy of VOLVO CARS CORPORATION

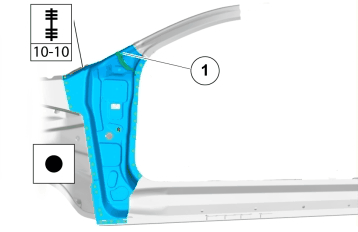

Fig 2: A-Pillar Sealant And Installation Weld Locations

GLL155627

Courtesy of VOLVO CARS CORPORATION

Use: Seal, 6817640 , x 2.

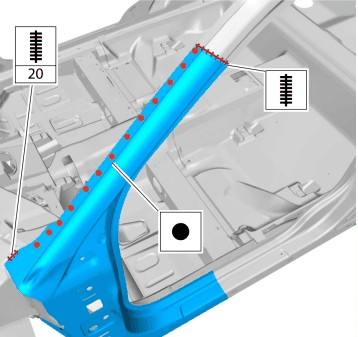

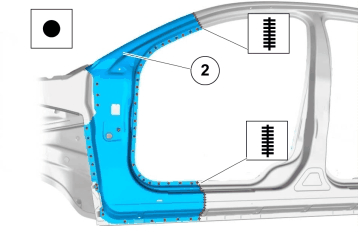

Fig 3: Outer A-Pillar Panel Weld Locations (1 Of 3)

GLL155628

Courtesy of VOLVO CARS CORPORATION

Use: Seal, 6817640 , x 2.

Fig 4: Outer A-Pillar Panel Weld Locations (2 Of 3)

GLL155629

Courtesy of VOLVO CARS CORPORATION

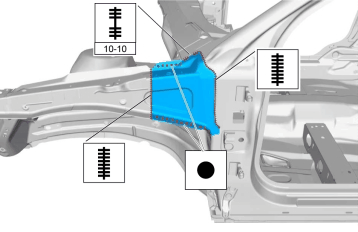

Fig 5: Outer A-Pillar Panel Weld Locations (3 Of 3)

GLL155630

Courtesy of VOLVO CARS CORPORATION

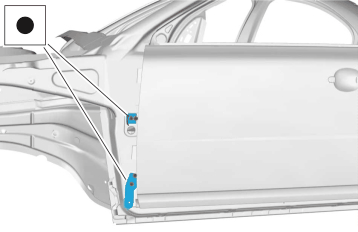

Fig 6: Front Fender Bracket Weld Locations

GLL155631

Courtesy of VOLVO CARS CORPORATION

Install the hinges. See DOOR HALF HINGE .

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; see RUSTPROOFING .
