Location Of Components

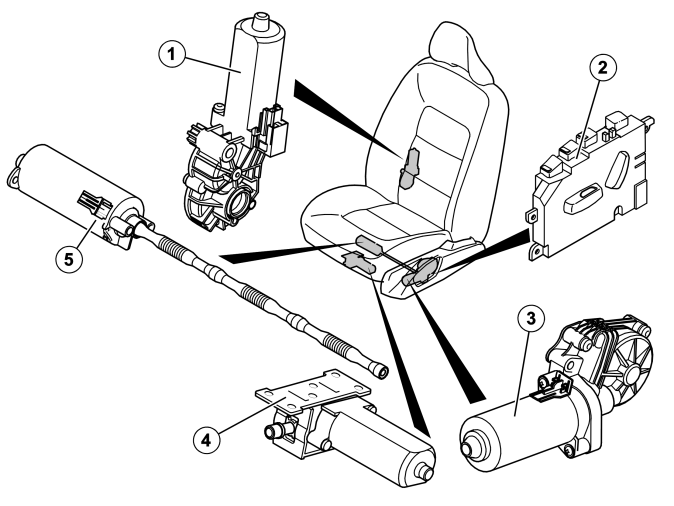

Fig 1: Identifying Power Seat Module (PSM) Components
GLL153436Courtesy of VOLVO CARS CORPORATION

Overview

  1. Angle adjustment motor.
  2. Control panel /Power seat module (PSM).
  3. Seat height adjustment motor.
  4. Tilt adjustment motor.
  5. Front-rear adjustment motor.
