Diagnostic Trouble Code (DTC) Information TCM-P089468

Condition

The transmission has three clutches. o perform a shift the clutch is pressurized via solenoids that receive signals from Transmission control module (TCM). Linear pressure solenoid SLC2 controls the hydraulic pressure for activating clutch C2.

The diagnostic trouble code (DTC) is stored if the control module detects that:

Output RPM in the transmission is too low compared to the input RPM from the engine side.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Driving with shift to 4th, 5th, or 6th gear.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

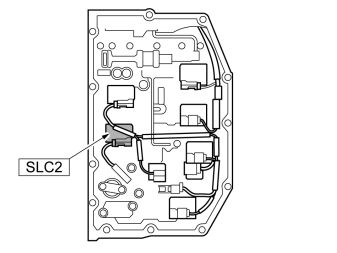

Fig 1: Locating SLC2 Solenoid

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

Dirt in the hydraulic system.

Fault symptom[s]

Automatic transmission/Gear changes take too long to complete/Unsure when/at all times
Driving/Poor performance/lacks power
Driving/Poor performance/lacks power/At take off
Driving/Hesitates/surges/During deceleration
Driving/Hesitates/surges/At steady speed
Driving/Hesitates/surges/During acceleration
Driving/Hesitates/surges/Unsure when/at all times
