Diagnostic Trouble Code (DTC) Information TCM-P086013
Condition

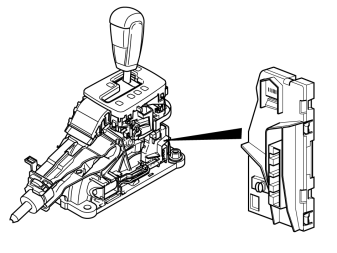

The transmission control module (TCM) and gear selector module (GSM) communicate with each other in a network via standardized serial communication - local interconnect network (LIN). The control modules transmit and receive information.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- No signal from the Gear selector module (GSM).
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Ignition on.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- Manual gear shift position (+/-) function is blocked.
Possible Source
- Contact resistance and oxidation in the terminals.
- Open circuit on the lead for the power supply or the ground lead to the gear selector module (GSM).
- Internal fault in gear selector module (GSM).
Fault symptom[s]
- Gear selector indicator does not function
- Text window and warning symbol/Yellow symbol and text message
