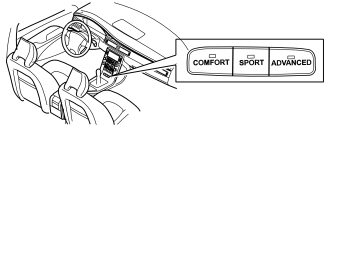

Component Specification: Switch: Notes
Type
Switch with different load resistance can be connected. Depending on the voltage in the switch, the control module can detect which button has been actuated. Indication via LEDs, background illumination.
characteristic
Voltage on the signal conductor from the switch should be approx. 1.63 V at Comfort position, approx. 2.65 V at Sport position and approx. 3.45 V at Advanced position.
