Diagnostic Trouble Code (DTC) Information SAS-C1B0061

Condition

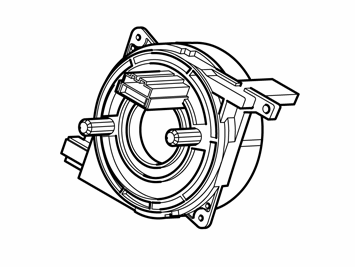

The Steering wheel angle sensor module (SAS) is located in the lever module together with the steering wheel module (SWM) and is supplied with power by it. Only the steering wheel angle sensor module (SAS) communicates on the controller area network (CAN).

Steering wheel angle sensor module (SAS) contains 2 processors that work together and check each other to be able to detect internal defects in the steering wheel angle sensor.

A diagnostic trouble code (DTC) is stored if the control module detects:

• Internal fault in the software.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

• Ignition switch position II.

Substitute Value

• The control module transmits a message to other nodes on the CAN network that its information is incorrect.

Possible Source

• Internal fault in the steering wheel angle sensor module (SAS).

Fault symptom[s]

• Text window and warning symbol/Yellow symbol and text message
• Warning lights and chimes/Antispin/antiskid (DSA, TRACS, STC, DSTC) indication/no indication
• Anti-spin function/Does not work
• Stability function/Does not work
• Active chassis function/Does not work
