Diagnostic Trouble Code (DTC) Information SRS-B00A064
Condition

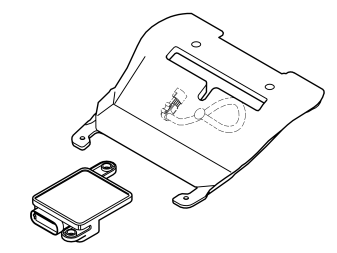

The Supplemental restraint system module (SRS) checks internal components in the Occupant weight sensor (OWS).
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The vehicle's vehicle configuration file is incorrect.
- Incorrect value runs longer than 2.5 seconds.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Ignition position II and III. Only during start-up of the supplemental restraint system.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- The control module's software does not correspond with the vehicle's equipment.
Fault symptom[s]
- SRS warning light on
- SRS warning message displayed
- PAD lamp is on
