Diagnostic Trouble Code (DTC) Information SRS-B008064

Condition

The Supplemental restraint system module (SRS) checks the circuit for the adaptive seat belt force limiter, driver's.

The diagnostic trouble code (DTC) is stored if the control module detects that:

The configuration is incorrect.
Incorrect value runs longer than 2.5 seconds.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Ignition position II and III. Only during start-up of the supplemental restraint system.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

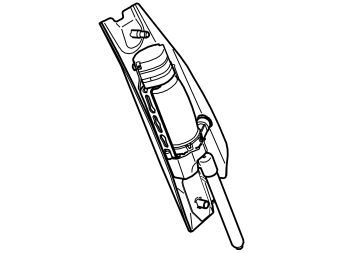

Fig 1: Identifying Adaptive Seat Belt Force Limiter

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

The control module's software does not correspond with the vehicle's equipment.

Fault symptom[s]

SRS warning light on
SRS warning message displayed
