Diagnostic Trouble Code (DTC) Information SRS-B002995
Condition

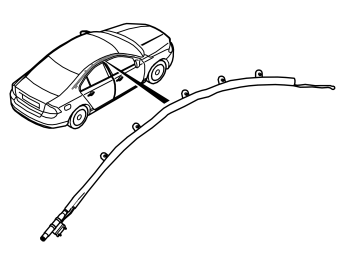

The Supplemental restraint system module (SRS) checks the circuit for the inflatable curtain, right.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- The circuit has a short-circuit to another circuit with a protection system that can be activated.
- Incorrect value runs longer than 2.5 seconds.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Ignition position II and III. nly during start-up of the supplemental restraint system.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source
- The circuit has a short-circuit to another circuit with a protection system that can be activated.
Fault symptom[s]
- SRS warning light on
- SRS warning message displayed
