Handling Non-Deployed SRS-Components

Non-deployed pyrotechnical SRS components must not be deployed/ignited inside the vehicle. See DISCARDING PYROTECHNIC COMPONENTS .

The SRS component is to be removed as specified in the instructions below.

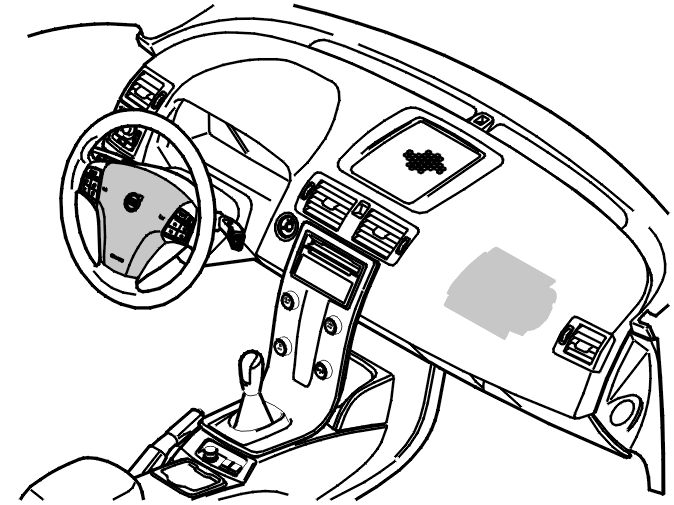

Fig 1: Locating Driver Airbag And Front Passenger Airbag

Courtesy of VOLVO CARS CORPORATION

Remove:

• the air bag on the driver's side. See DRIVER'S AIRBAG (2007-09) , DRIVER'S AIRBAG (2010) or DRIVER'S AIRBAG (2011-12)
• the air bag on the passenger side. See AIRBAG, PASSENGER SIDE
• the airbags (SIPS) in the seats. See AIR BAG, FRONT SEAT (2007-08) or AIR BAG, FRONT SEAT (2009-12)
• the side air curtains (IC). See or INFLATABLE CURTAIN
• the front safety belt tensioners. See FRONT SAFETY BELT RETRACTOR
• the rear safety belt tensioners. See SEAT BELT RETRACTOR, REAR
• the supplemental restraint system module. See SEAT BELT AND OTHER RESTRAINING SYSTEMS
• the steering wheel.
• the contact reel/steering wheel module (SWM). See STEERING WHEEL CONTROL MODULE (2007-09) or STEERING WHEEL CONTROL MODULE (2010-12)

Other information on the SRS system after a collision. See HANDLING DEPLOYED PYROTECHNICAL PART .
