Diagnostic Trouble Code (DTC) Information CCM-B10894A

Condition

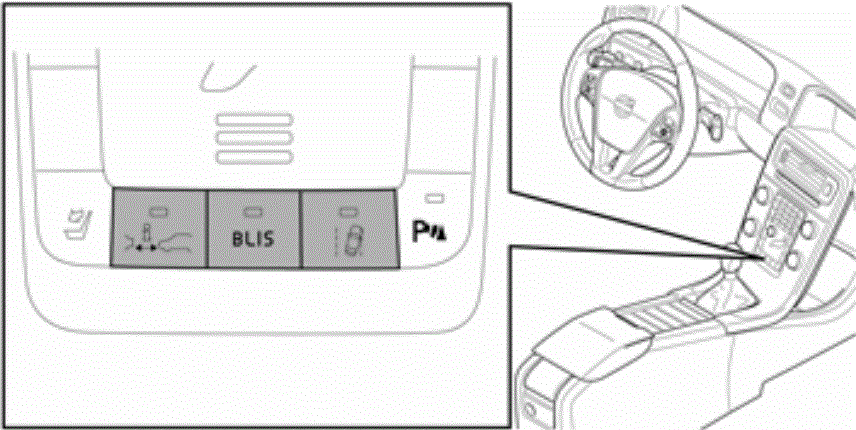

The Climate control module (CCM) checks the status of the buttons in the lower part of the control panel.

The diagnostic trouble code (DTC) is stored if the control module detects that:

• The button is not included in the vehicle configuration file.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

• Ignition switch position I and II.

Substitute Value

• None.

Possible Source

• The vehicle's configuration is incorrect.

Fault symptom[s]

• Buttons/control knobs on center console (Climate)/No/reduced/incorrect function
