Diagnostic Trouble Code (DTC) Information CCM-B10894A

Condition

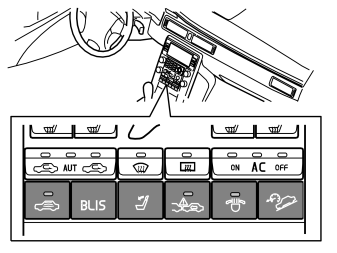

Climate control module (CCM) checks the status for the bottom row's keys on the keypad.

The diagnostic trouble code (DTC) is stored if the control module detects that:

• The button is not included in the vehicle configuration file.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

• Ignition switch position I and II.

Substitute Value

• None.

Possible Source

• The vehicle's configuration is incorrect.

Fault symptom[s]

• Buttons/control knobs on center console (Climate)/No/reduced/incorrect function
