Designation Of Thread Insert

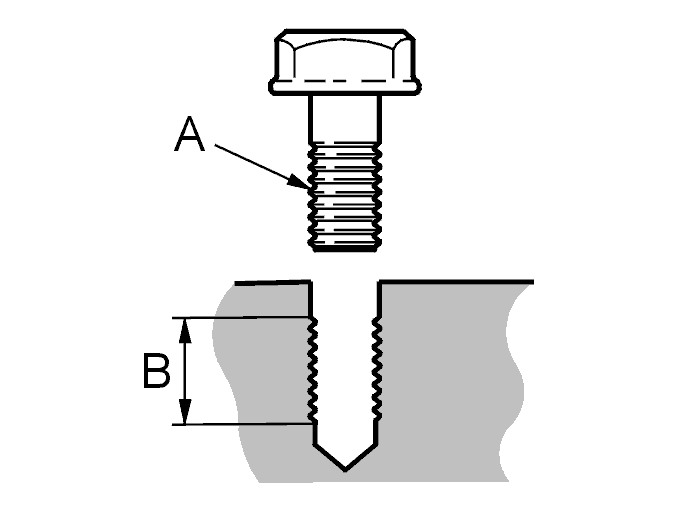

Fig 1: Measuring Old Threads And Thread Length In Hole

GLL100836

Courtesy of VOLVO CARS CORPORATION

Measure the old threads and thread length in the hole.

A: Thread.

B: Thread length.
