Control Module
The primary task of the combustion preheater module (CPM) is to manage the functions of:
- auxiliary heater
- parking heater
- Remote start
- remote start of parking heater via Phone module (PHM) (option, from and incl. structure week 201020).
The same control module is used for both the auxiliary heater and the parking heater. The heater can serve as either an auxiliary heater or a parking heater depending on vehicle configuration.

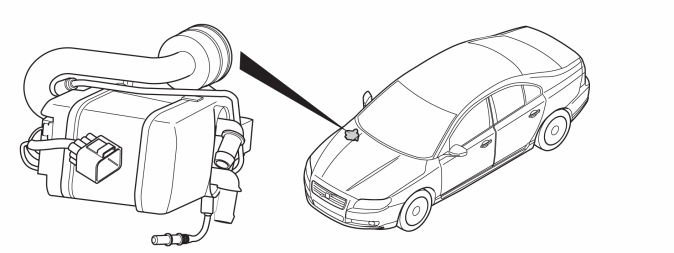

The heater is located in the front right wheel housing, up toward the A-pillar. It is covered by the plastic wheel arch liner.
The combustion preheater module (CPM) communicates with directly connected components and with other control modules via CAN communication.
The control module checks activations that are made, and the input and output signals through integrated diagnostics. A diagnostic trouble code is generated if the control module detects a fault. Any diagnostic trouble codes are stored in the control module memory. The information can be read off using the diagnostic tool.
A simple way to check that the combustion preheater module (CPM) is supplied with power is to activate the heater and listen to hear if it starts. It can be activated via:
- the control stalk (vehicles with parking heater)
- the diagnostic tool (vehicles with auxiliary heater)
- remote start equipment (accessory)
- remote start of parking heater via Phone module (PHM) (option, from and incl. structure week 201020).
