Control Module Relay Box (2007-2009): Removal

CAUTION:

The control module must be removed, reinstalled and downloaded with software before the control module is replaced.

Check according to: DIAGNOSTICS/VEHICLE COMMUNICATION /Advanced/CEM/Checking communication and control module in VIDA. VIDA is Volvo-specific scan tool.

Battery, disconnection, see BATTERY DISCONNECTING AND CONNECTING

Remove glove compartment, see GLOVE COMPARTMENT

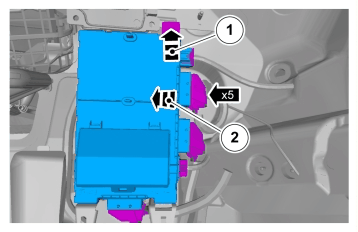

Fig 1: Identifying Control Module Relay Box Passenger Compartment

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.
