Light Functions

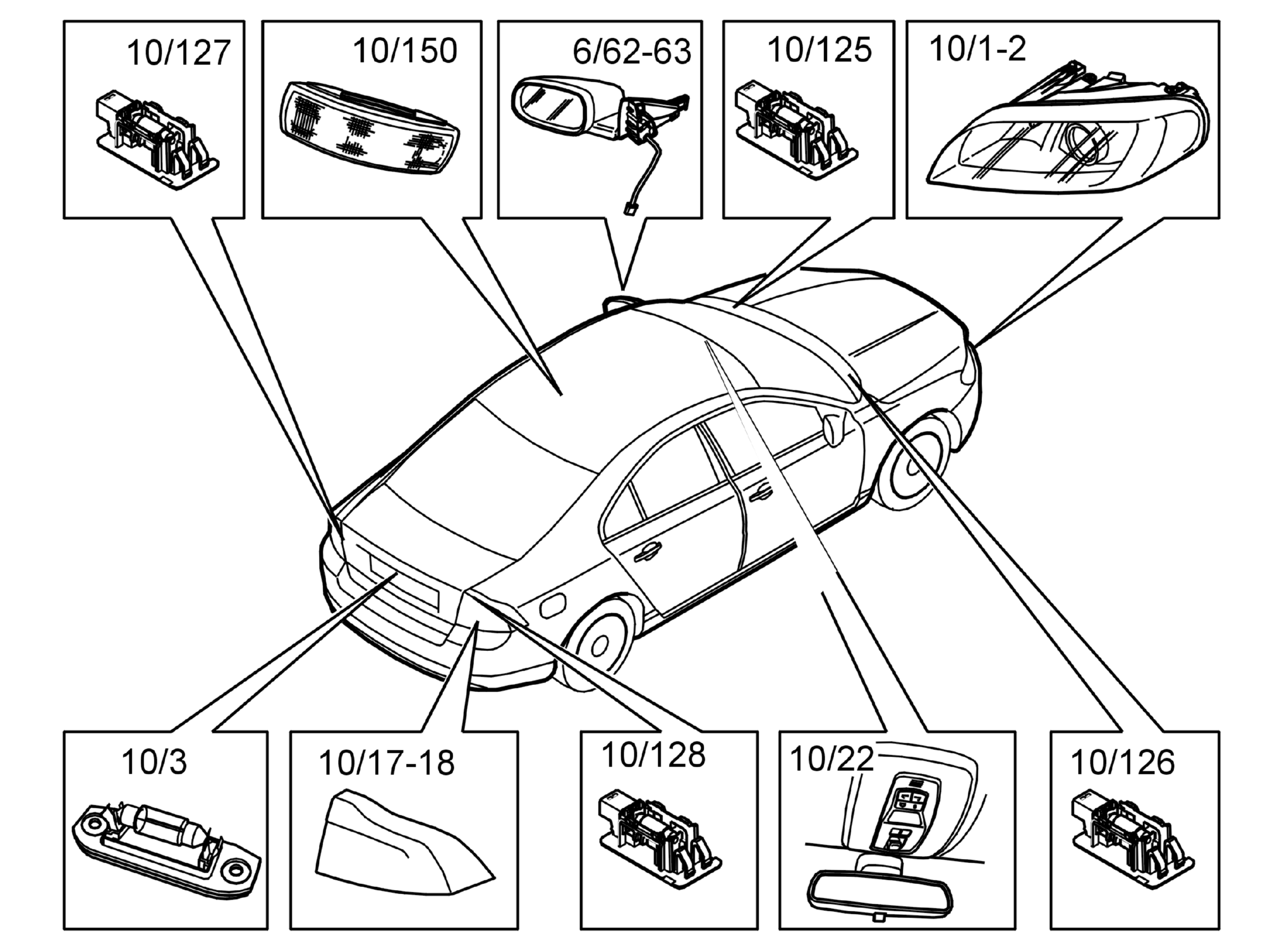

Fig 1: Locating Lighting Components

Courtesy of VOLVO CARS CORPORATION

The interior lighting is checked by the central electronic module (CEM). The interior lighting comes on when the vehicle is unlocked.

There are also functions for external lights:

approach lighting
approach lights.

Local lighting

Local lighting is activated using the remote key. The following light when activated:

interior lighting
parking lamps
license plate lighting
door mirror lighting (option).

During initial setting of the lighting it is lit for 30 seconds or until the remote key is inserted in to the starter module. This time can be adapted to the wishes of the customer.

Approach lights

There is a function for approach lights as part of the lighting system. When the engine is off, the remote key is removed from the starter module and the dip switch is activated, the following lights:

low beam
parking lamps
fog lamps
interior lighting.

The default setting for the lighting is 30 seconds. This time can be adapted to the wishes of the customer.

Customer settings

The duration that the local lighting and approach lights are on can be adapted to the wishes of the customer.

For information about customer adaptations, see: DESCRIPTION OF PROGRAMMABLE PARAMETERS, CUSTOMER ADAPTATION
