Checking Components

• Ignition on.

  Activate the feed pump and check that it starts and runs normally.

  Listen using a stethoscope or a screwdriver pressed to your ear. The oil pump motor shall hum and vibrate slightly.

  NOTE:

  The pump motor may sound like it's running but in certain cases it only oscillates.

  Fig 1: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS CORPORATION

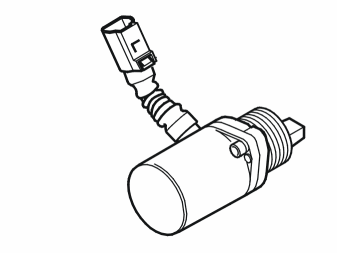

  Fig 2: Identifying Electric Feed Pump

  Courtesy of VOLVO CARS CORPORATION

Is the feed pump working?

• YES

  Refer to INFORMATION

• NO

  Refer to CHECKING THE CONNECTORS AND CABLES
